Technovit 4000 is a fast-curing, cold-polymerizing, 3-component resin for optimum edge protection and marginal sharpness also ideal for embedding samples with porous surfaces, small gaps, blind holes or undercuts.
Benefits
very low polymerization shrinkage and optimum margin fit
excellent flow behavior very good adhesion to metal surfaces, therefore
optimal edge protection and marginal sharpness
excellent grinding and polishing properties
excellent grinding and polishing properties
Good to know
Technovit 4000

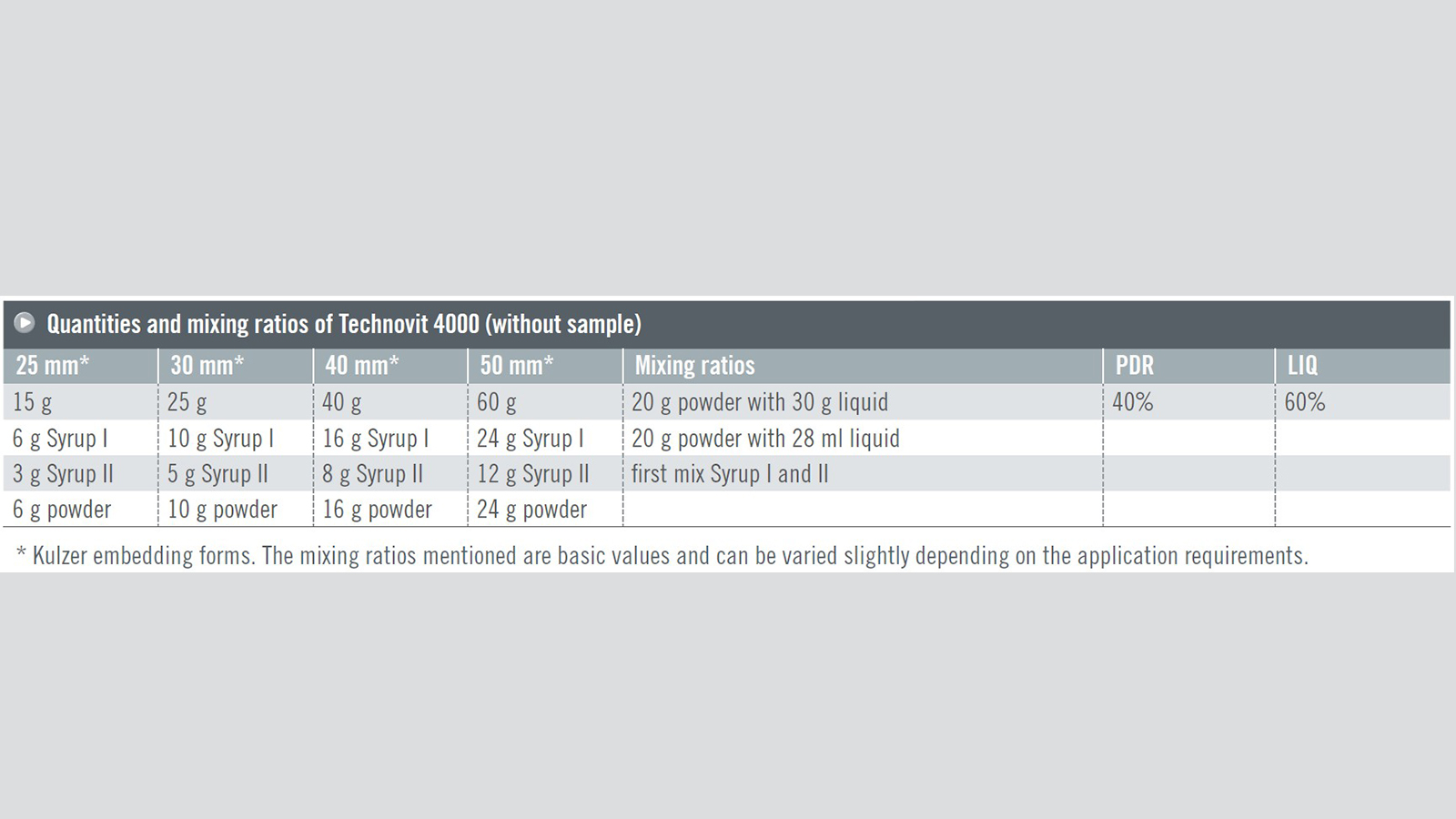

Quantities and mixing ratios
Product details

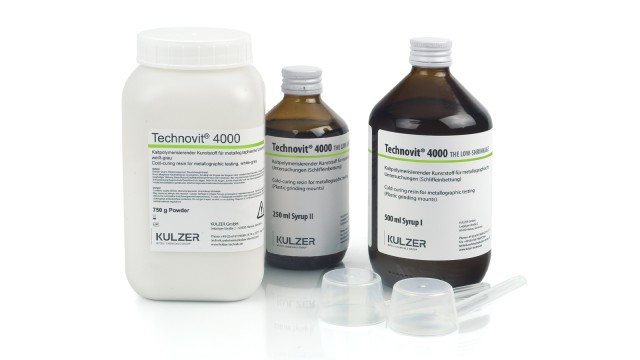

Technovit is a 3-component cold embedding resin based on modified polyester and ultrafine inorganic filler in the form of Powder, Syrup I and Syrup II.
Vacuum impregnation is possible during the pot time.
Curing time of approx. 16–20 min
Mixing ratio is 1:2:2 by volume or 1:2:3 by weight (Syrup II : Syrup I : Powder)
Technovit 5000 THE CONDUCTIVE cold embedding system - Perfect for SEM examinations and is also a good basis for the electrolytic preparation of metallographic samples.
