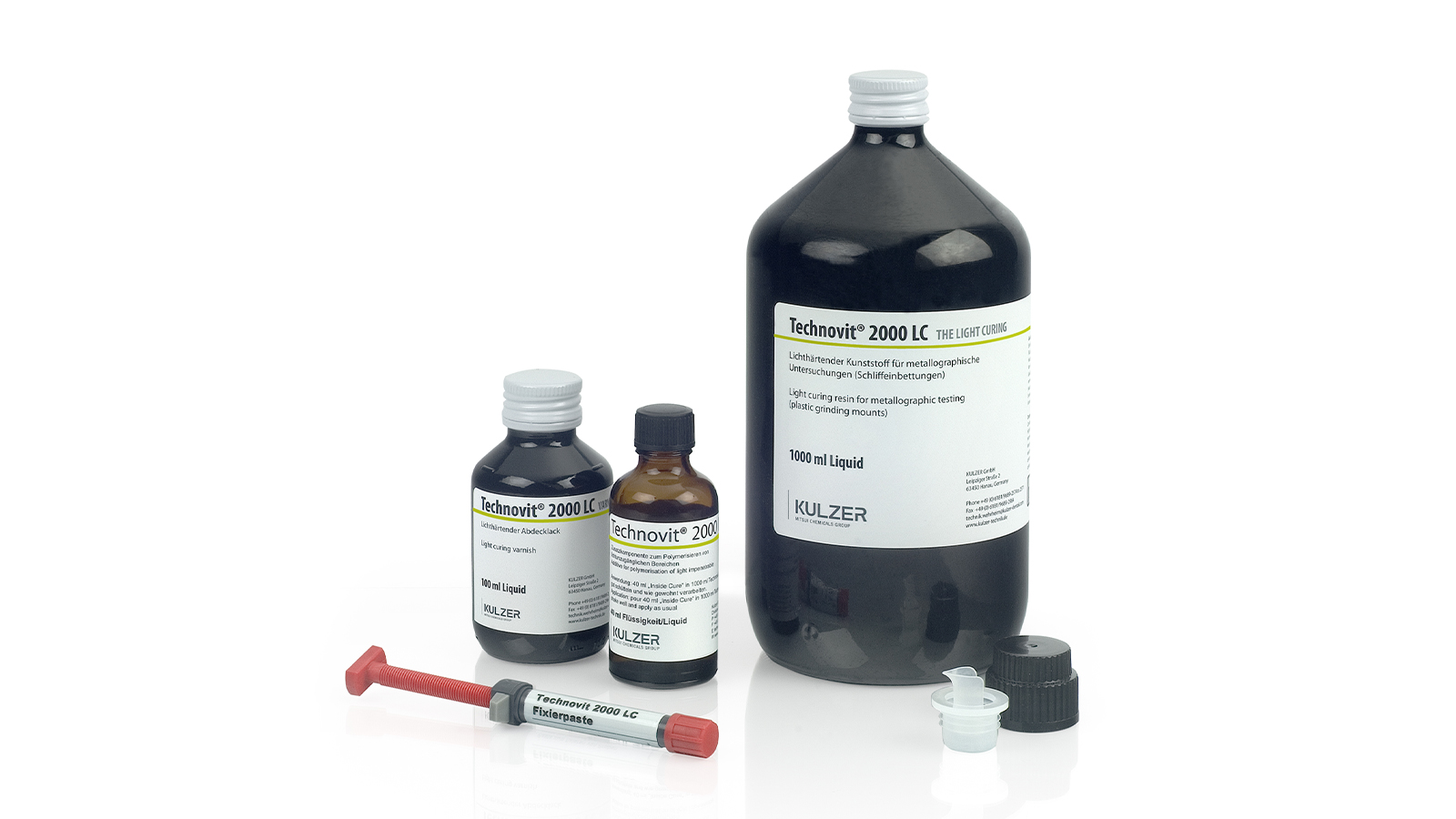

Technovit® 2000 LC
The light curing
Technovit 2000 LC for delicate, temperature-sensitive samples Technovit 2000 LC is an easy to use, 1-component resin, ideal for target preparations in microelectronics and the embedding of polymer materials. The polymerization is carried out under blue light in the Technotray POWER light polymerization unit. The system is used for the preparation of delicate, temperaturesensitive materials and micro parts.
Benefits
- complete consumption – no mixing residues
- variable pot time, as polymerization is only initiated by using blue light
- low polymerization temperature of approx. 90 °C approx. 50 °C also achievable with the irradiation programs
- alcohol and acid resistant
- SEM-ready
- no bubble formation – highly transparent
- non-dangerous goods
Good to know
/materialographie/einbetten/lichthaertende-einbettsysteme/technovit-2000-lc-fixierpaste-step-by-step-1-auftragen-1600-x-900-image-640w-360h.jpg "Technovit 2000 LC")
/materialographie/einbetten/lichthaertende-einbettsysteme/technovit-2000-lc-fixierpaste-step-by-step-2-positionieren-1600-x-900-image-640w-360h.jpg "Technovit 2000 LC")
/materialographie/einbetten/lichthaertende-einbettsysteme/technovit-2000-lc-fixierpaste-step-by-step-3-probe-fixiert-1600-x-900-image-640w-360h.jpg "Technovit 2000 LC")
/materialographie/einbetten/lichthaertende-einbettsysteme/technovit-2000-lc-fixierpaste-step-by-step-4-probe-aushaerten-1600-x-900-image-640w-360h.jpg "Technovit 2000 LC")
/materialographie/einbetten/lichthaertende-einbettsysteme/technovit-2000-and-2021--lc--variable-lichtquellen-1600-x-900-image-640w-360h.jpg "Technovit 2000 & 2021 LC")

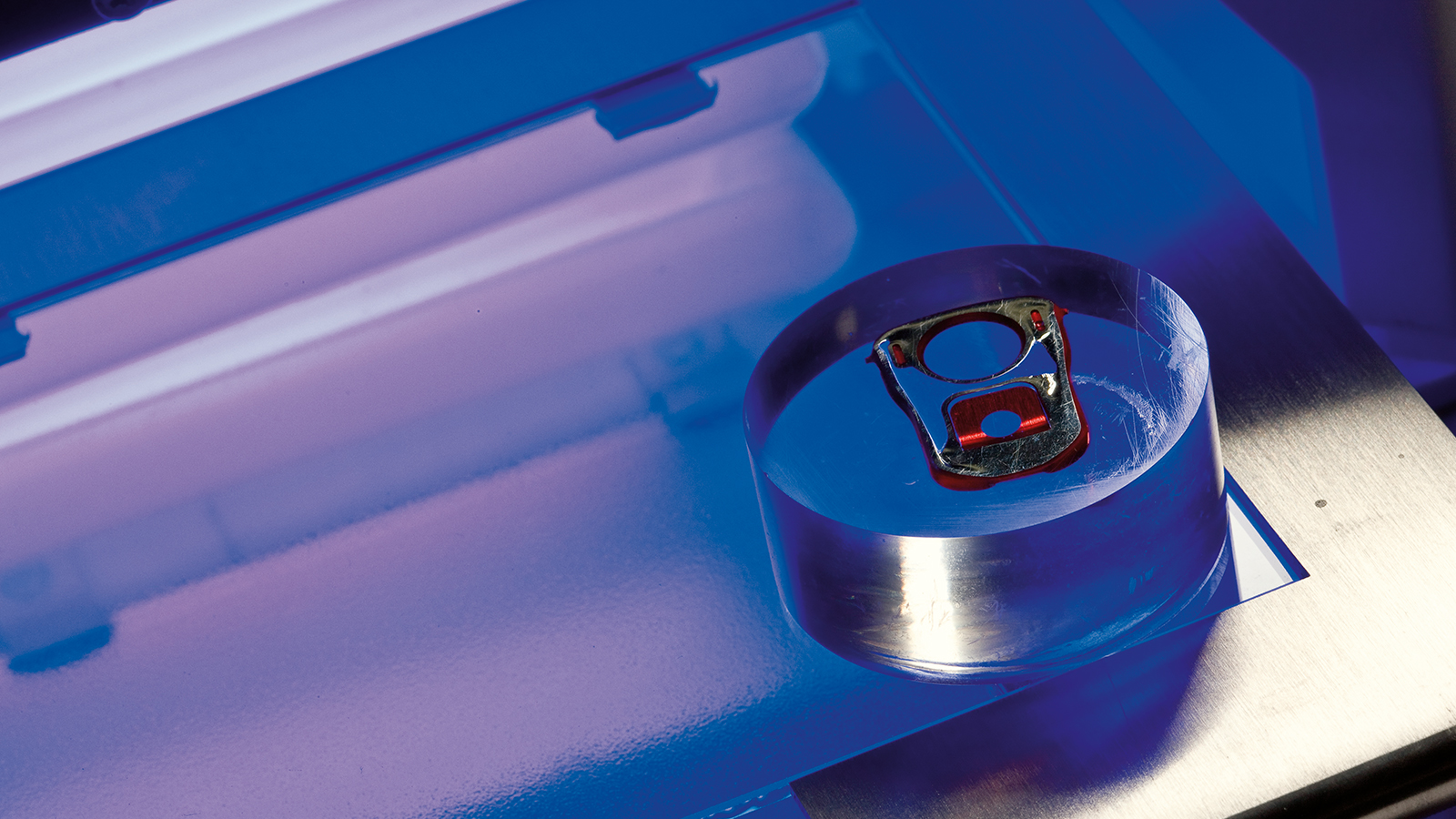

Variable light sources
Perfect adaptation of the polymerization properties to the requirements of the sample
The new generation of light-curing products Technovit 2000 LC and Technovit 2021 LC FAST feature multifunctional initiators that allow them to react to a wide range of light wavelengths.

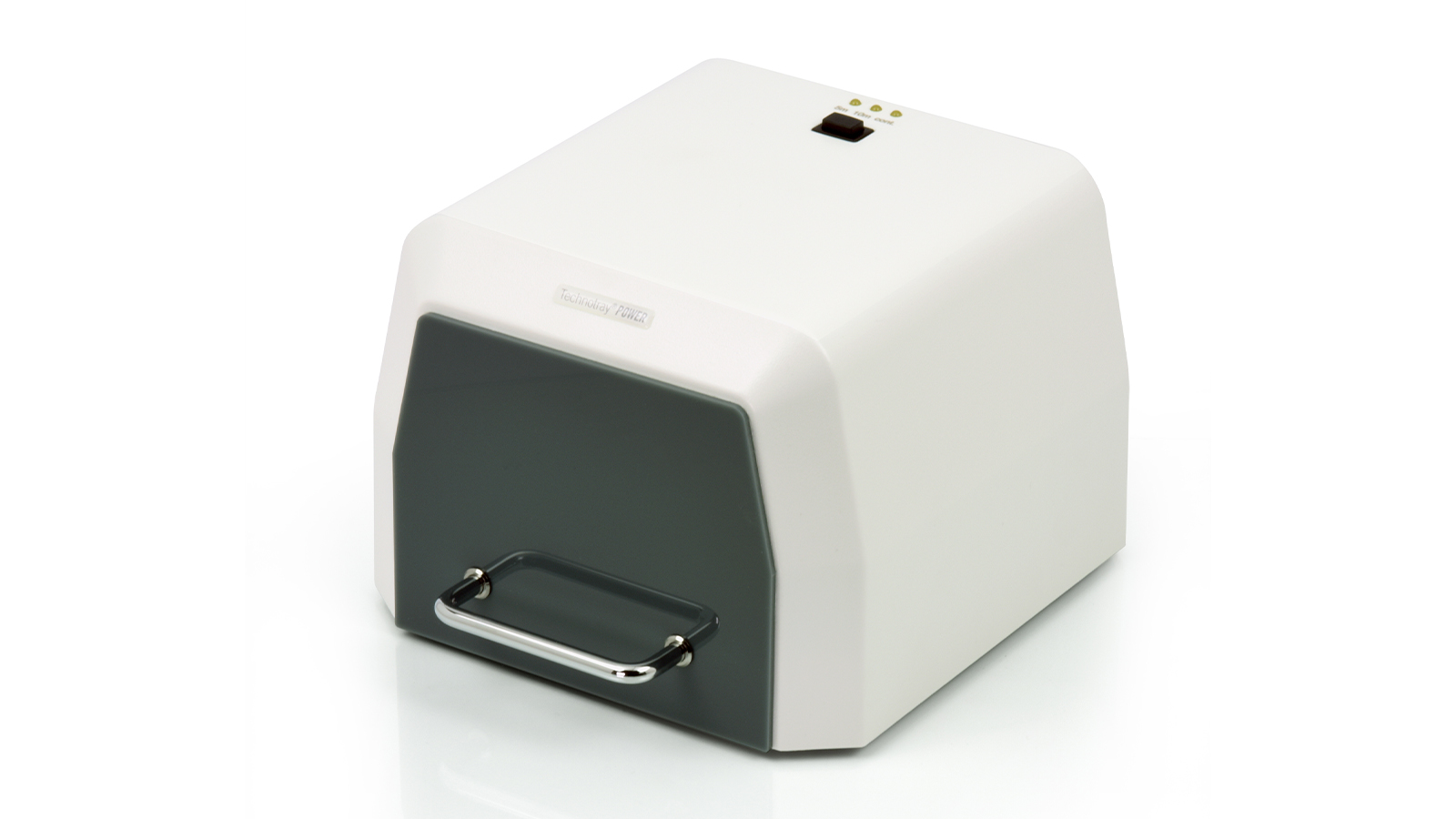

Together with the variable, cost-effective Technotray POWER light unit, this results in a highly versatile "light polymerization concept” that is very easy to adapt to the objective of sample preparation. LEARN MORE

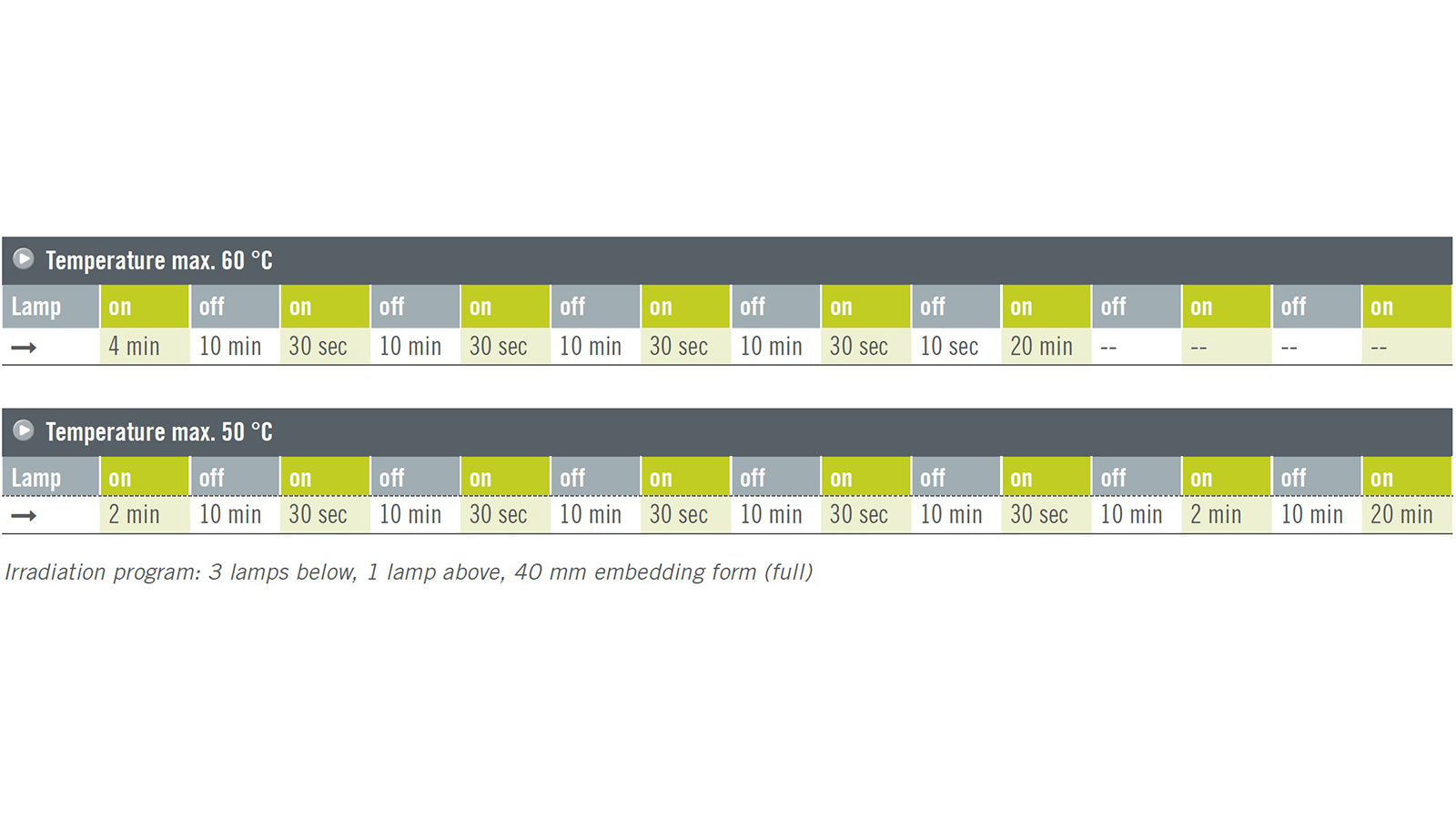

/materialographie/einbetten/lichthaertende-einbettsysteme/technovit-2000-lc-irradiation-program-1600-x-900-image-640w-360h.jpg "Technovit 2000 LC Irradiation program")
Components
/materialographie/einbetten/lichthaertende-einbettsysteme/technovit-2000-inside-cure-1600-x-900-image-640w-360h.jpg "Technovit 2000 Inside Cure")

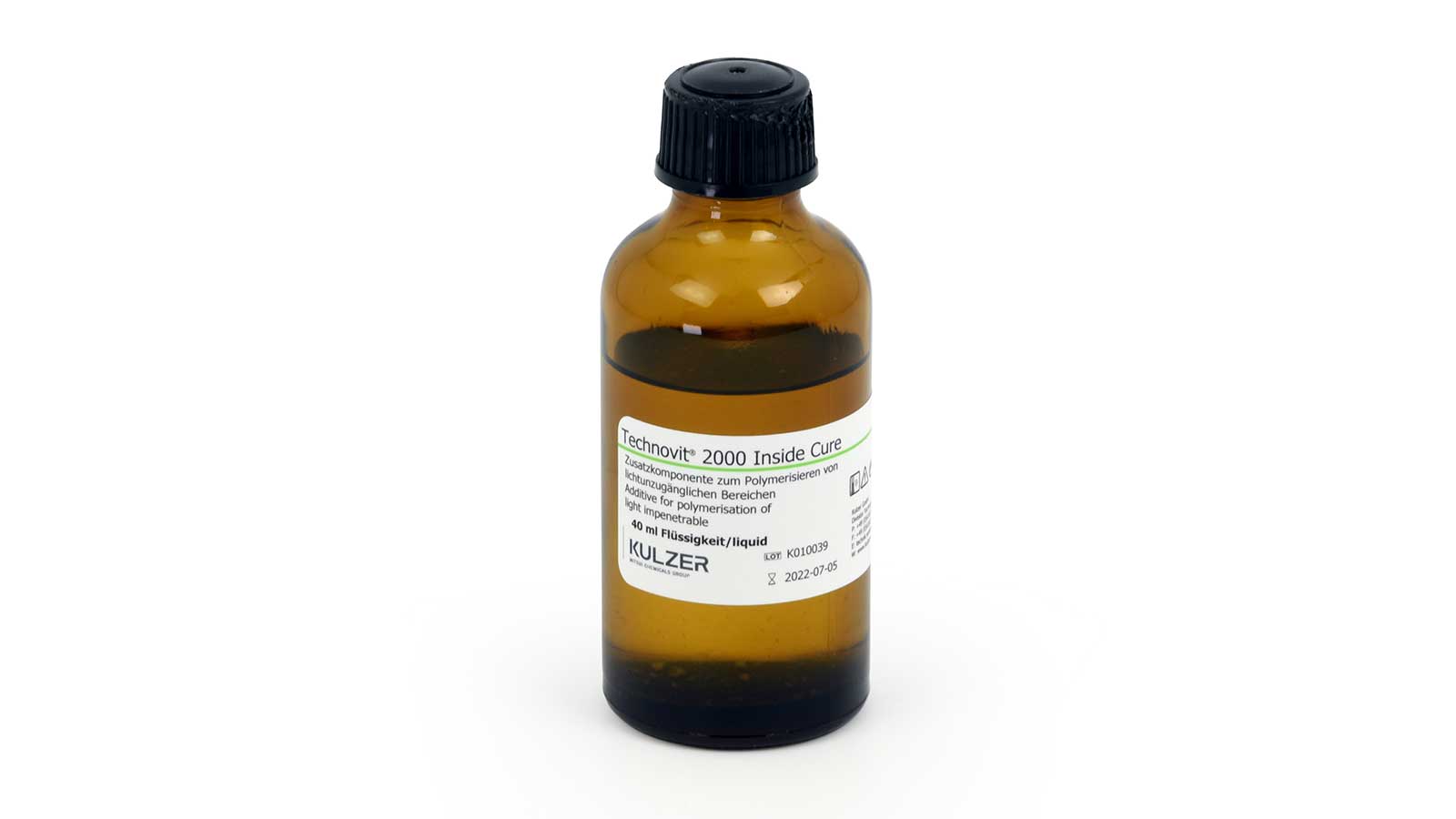

Technovit 2000 Inside Cure - Brings "light into the darkness”
Technovit 2000 Inside Cure is a special additive that enables the polymerization of Technovit 2000 LC in shadow areas or on the inside of the sample (porous materials, inner areas of pipe sections, etc.).
Properties and application
- much wider range of applications, as it is suitable for all
- sample types for infiltration of porous samples
- same application as a standard product – no change to work processes, documentation, etc. flawless mixing
- add the complete bottle of Inside Cure to the bottle of Technovit 2000 LC Liquid, shake – ready; all application parameters remain unchanged
/materialographie/einbetten/lichthaertende-einbettsysteme/technovit-2000-fixierpaste-1600-x-900-image-640w-360h.jpg "Technovit 2000 LC Fixing Paste")

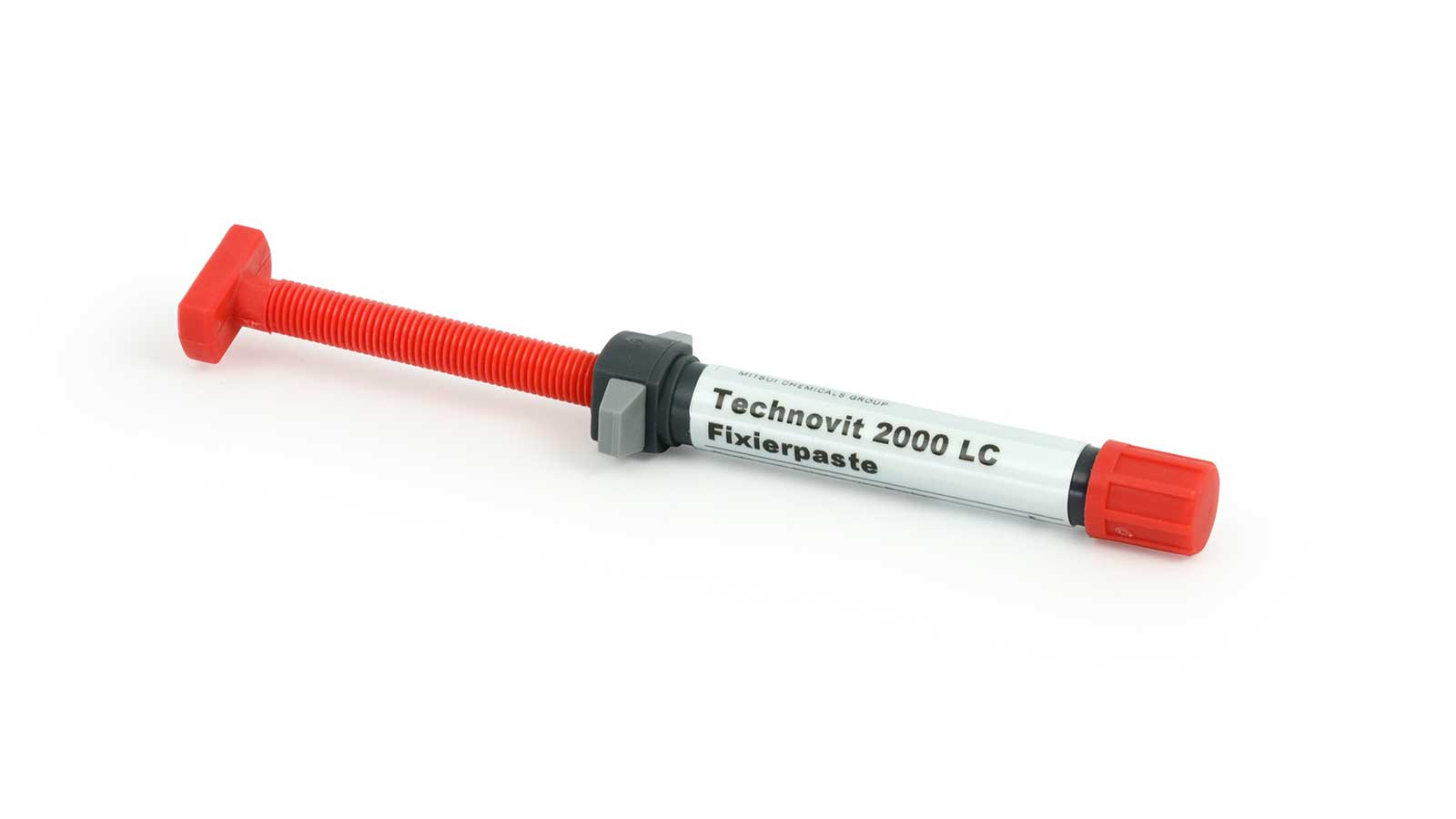

Technovit 2000 LC Fixing Paste

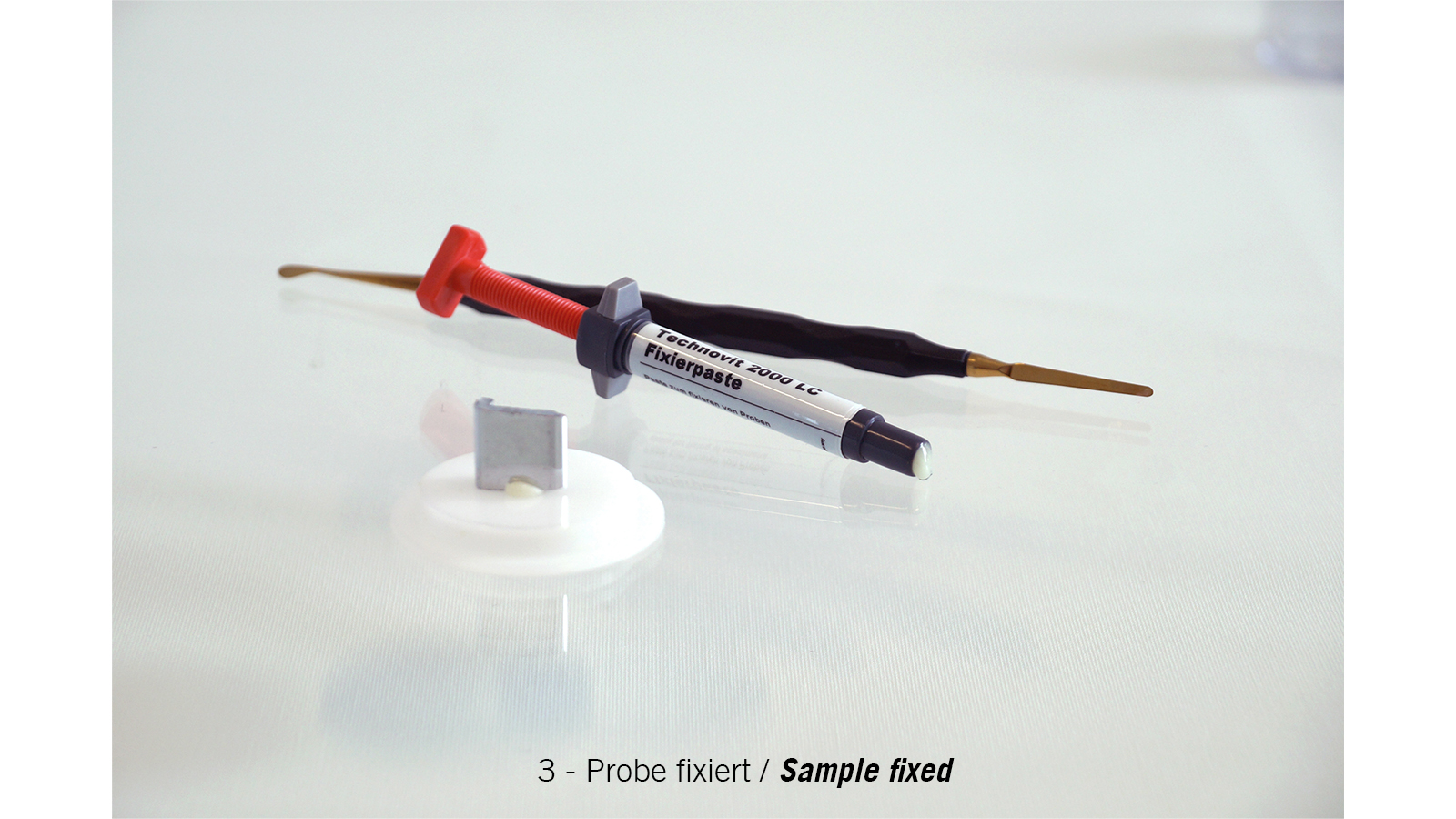

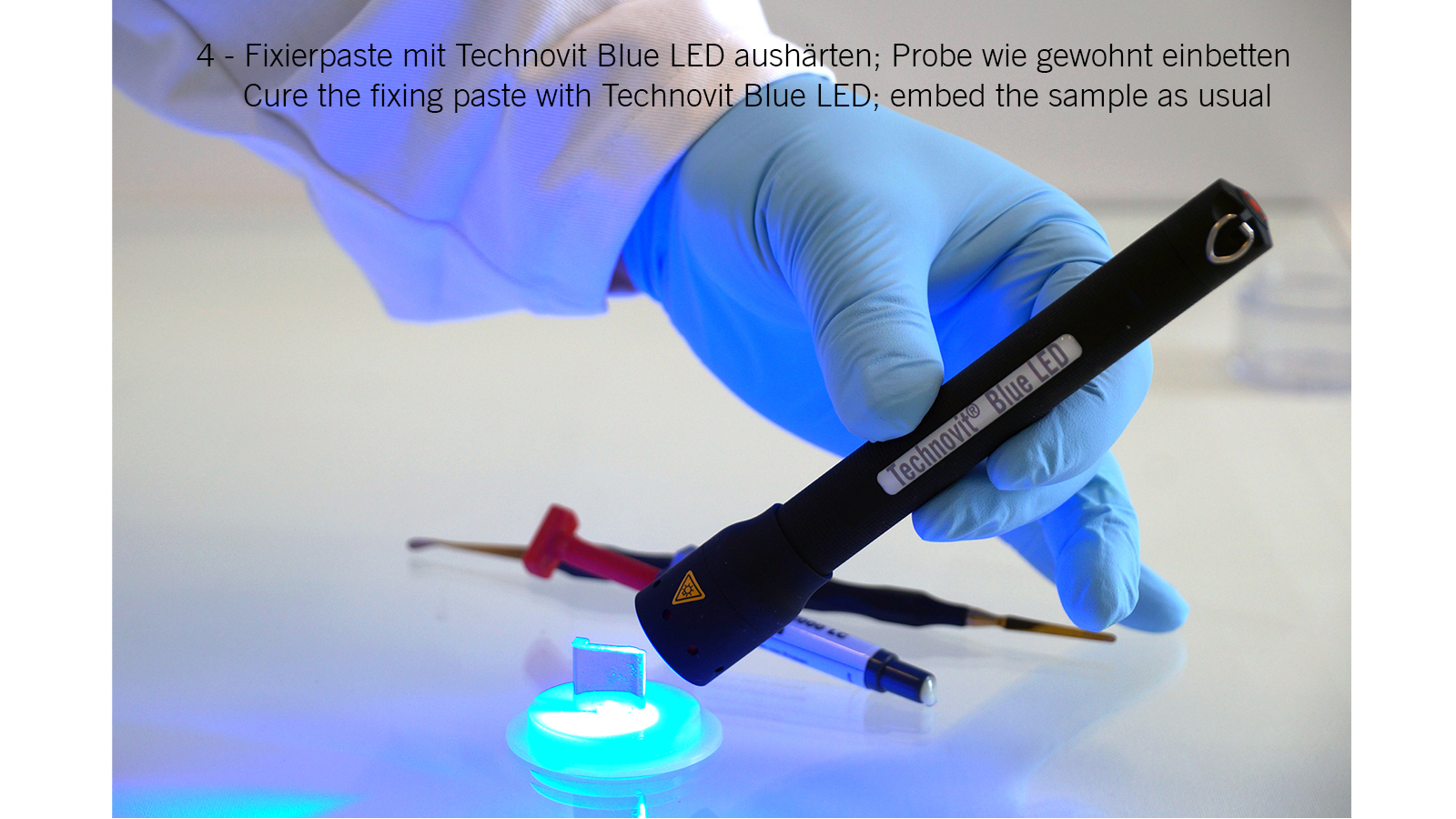

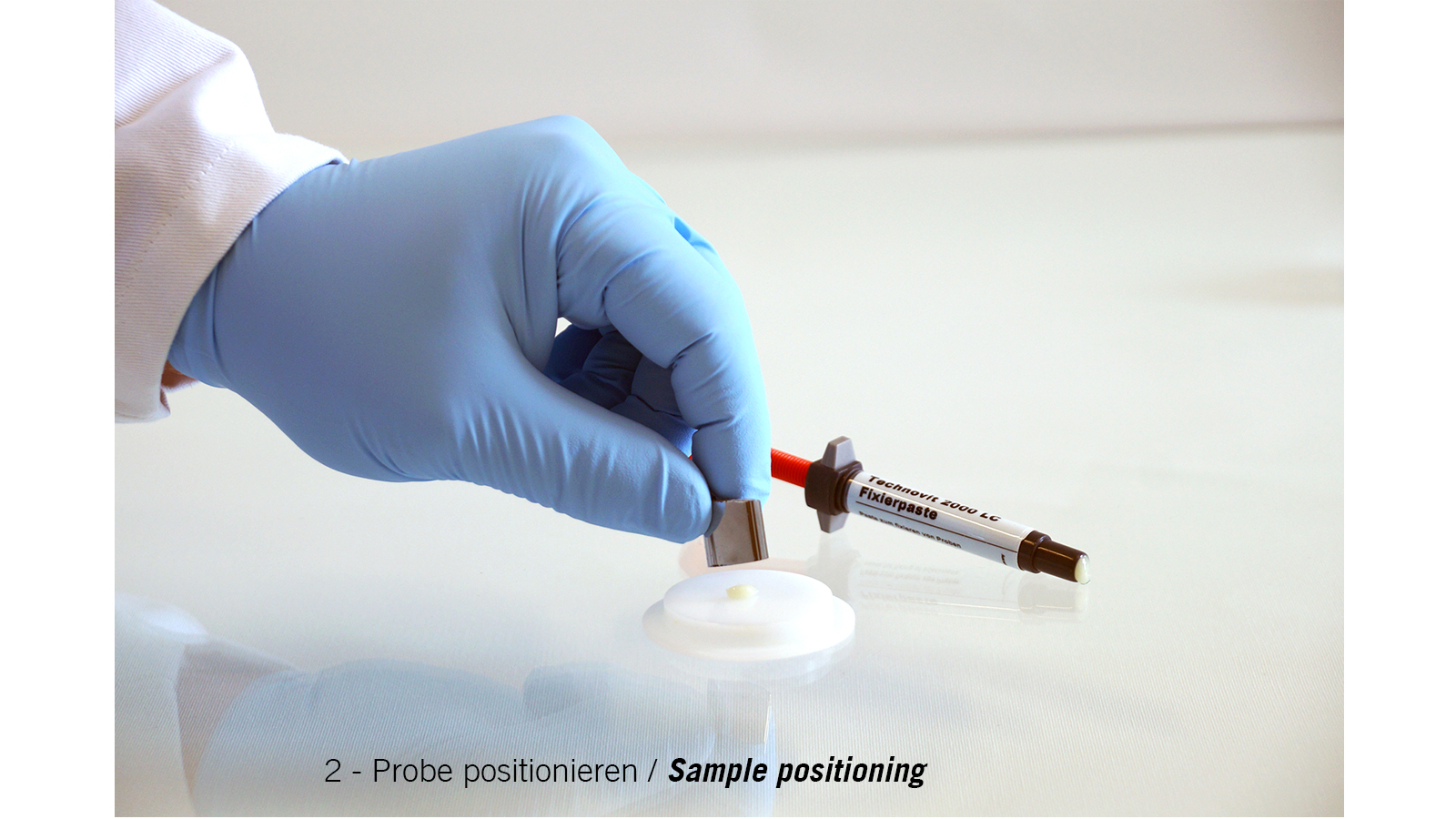

The light-curing Technovit 2000 LC Fixing Paste is used for positioning the samples in the embedding form. It can be modelled like modelling clay and ground and polished after hardening. Due to its high hardness, the fixing paste is also ideally suited as edge protection. Perfect positioning aid also for all other embedding systems with the aid of the Technovit Blue LED.
/materialographie/einbetten/lichthaertende-einbettsysteme/technovit-2000-abdecklack-1600-x-900-image-640w-360h.jpg "Technovit 2000 LC Covering Varnish")

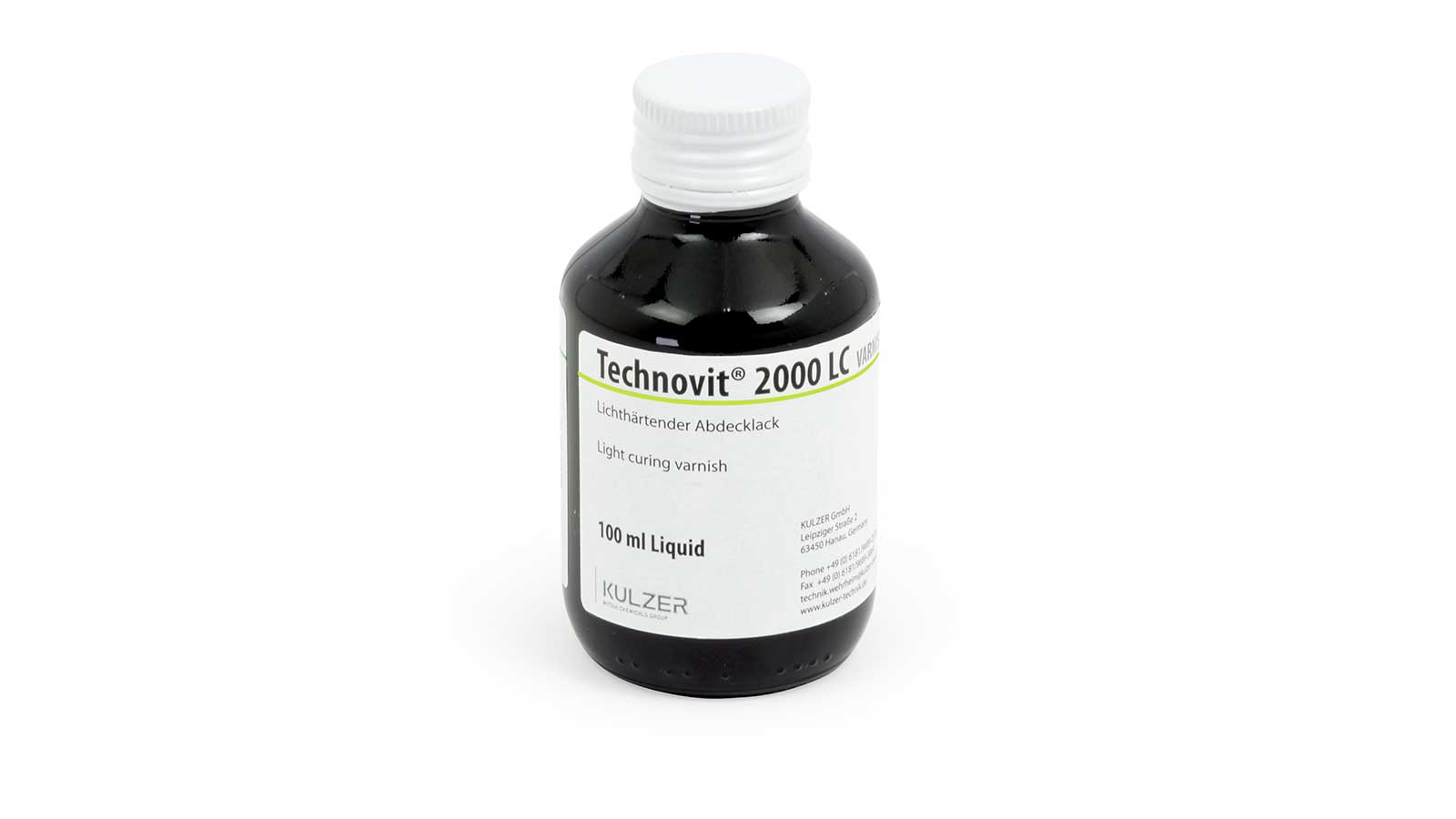

Technovit 2000 LC Covering Varnish
The Technovit 2000 LC Covering Varnish is used to prevent a dispersion layer on the reverse side of the sample so that a crystal-clear, hard and dry surface is created after polymerization has completed. It is applied to the sample in a layer a few millimetres thick after half the polymerization time. Sample markings can also be securely affixed in this way.
