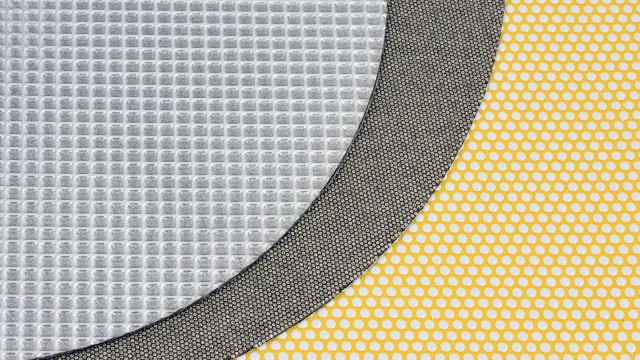

Technodisc Diamond Grinding Disk
Self-adhesive diamond grinding disk
Technodisc diamond grinding discs - Self-adhesive, nickel-bonded, easy to grip, high stock removal rate. The nickel-bonded Technodisc Diamond Grinding Disks have a very good grip and are characterised by a high material removal rate. They are available in grain sizes 250 μm, 125 μm, 75 μm, 40 μm and 20 μm. The Technodisc system is complemented by the two, very fine Technodisc 30 and 10 μm with a synthetic resin bond. The excellent efficiency is the result of a long tool life as well as the good and fast material removal rate of the Technodisc.
Benefits
- high material removal rate
- excellent efficiency
- long tool life
- easy to combine with other sanding systems
Good to know
| Metal blanks | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 66078656 | Ø 200 mm | |||||||||||||
| 66078659 | Ø 250 mm | |||||||||||||
| 66078660 | Ø 300 mm | |||||||||||||
Practial tips
Technodisc 125 μm, for example as a pre-grinding step for carbide is a good preparer for the subsequent CAMEO DISK SILVER with BioDiamant Liquid green. However, it can just as well be used for cold-embedded, medium-hard steels with poor cut-off as preparation for the subsequent CAMEO DISK PLATINIUM. The nickel bond enables good pre-grinding – both for embedding resin as well as steel. Water or the "Booster Liquid" is used as the lubricant. Alternative lubricants can also be used for water-sensitive samples.
