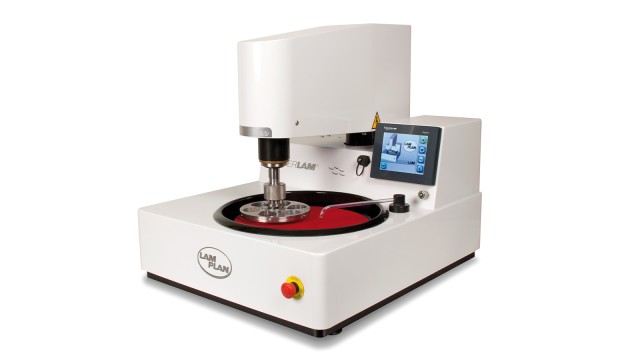

MASTERLAM® 1.0
Automatic grinding and Polishing machine with central sanding pressure
The MASTERLAM 1.0 is a high performance automatic sanding and polishing machine with central sanding pressure for intensive applications.
Automatic grinding and polishing machine, for working discs, Ø 250 to 300 mm, with two directions of rotation and variable speed, touch screen control with intuitive and user-friendly operator interface.
Benefits
- powerful central print head, two directions of rotation, variable speed and variable pressure.
- polishing head with scan function for adjustable oscillation.
- oscillation option, especially large format specimens are polished efficiently
- touchscreen control with intuitive and user-friendly operator interface
Product details
All machines in the MASTERLAM series have intuitive programme control, stored parameters and export functions, parameters and export functions.
The 4-fold control of the DISTRILAM dosing is directly integrated.
The MASTERLAM 1.0 has an adjustable speed up to 650 rpm, the head up to 150 rpm with adjustable clockwise/anticlockwise rotation with a permissible load of 5 - 400 N (sample sand pressure). The special feature of this polishing head is the adjustable oscillation (optional extra).
When using the MASTERLAM 1.0 with the oscillation option, large-format specimens in particular are polished efficiently and the surface quality is improved polished efficiently and the surface quality (flatness) and the grinding pattern are qualitatively improved.
The stock removal rate increases and the service life of the polishing carrier increases (even wear is achieved by using the entire carrier surface).
The MASTERLAM 1.0 model is a high-performance machine for intensive applications, such as those intended for production controls. Optionally, the machine can be equipped with a removal control function (accurate to 0.05 mm).
Good to know
/materialographie/schleifen-and-polieren/schleif--und-poliermaschinen/masterlam-1-oszilationskopf-1600-x-900-image-640w-360h.jpg "MASTERLAM 1 Oszillationskopf")

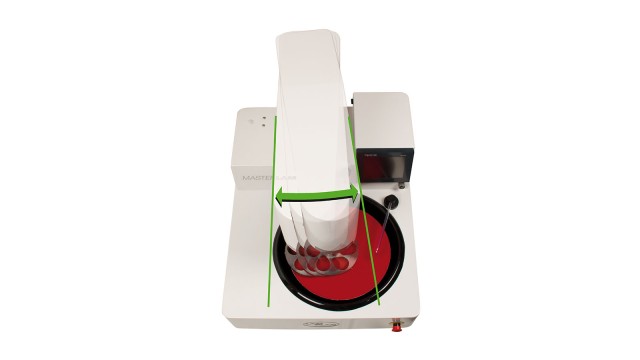

Tip: The oscillating head achieves an optimal polishing result and uses the entire range of the grinding and polishing discs.
Additional products
/materialographie/schleifen-and-polieren/schleif--und-poliermaschinen/distrilam-1600-x-900-image-640w-360h.jpg "DISTRILAM")
DISTRILAM®
Automatic dosing unit
The DISTRILAM is an automatic dosing unit with peristaltic pump. The dosing unit is controlled via the machine's touch screen (4 circuits).
