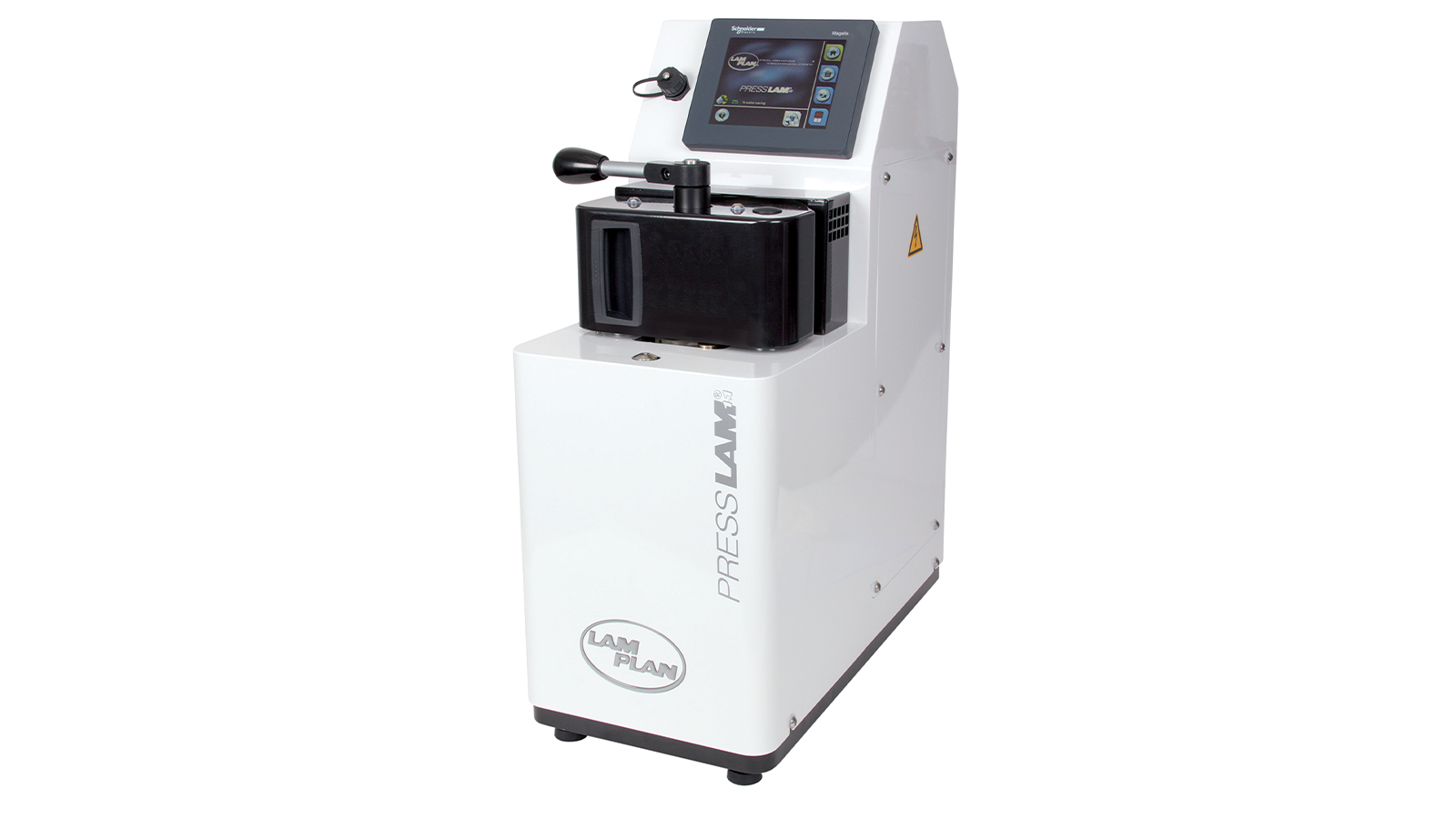

/materialographie/einbetten/equipment-einbettsysteme/presslam-1-1-image-640w-360h.jpg "PRESSLAM® 1.1")
PRESSLAM® 1.1
Automatic hot mounting press
The PRESSLAM 1.1 is an easy-to-use automatic hot mounting press with separately adjustable functions and compact size. Its compact size makes it easy to place several machines side by side. The easy accessibility of the press cylinders for effortless positioning of the samples, the simple handling and possible double embeddings achieve high sample throughputs. The PRESSLAM 1.1 is the ideal complement for your metallography.
Benefits
- 5.7" colour touch screen
- 4 pressurisation modes
- Suitable for sample diameters between 25.4 and 40 mm
- easy and quick change of press cylinders without tools
- compact size
Accessoires

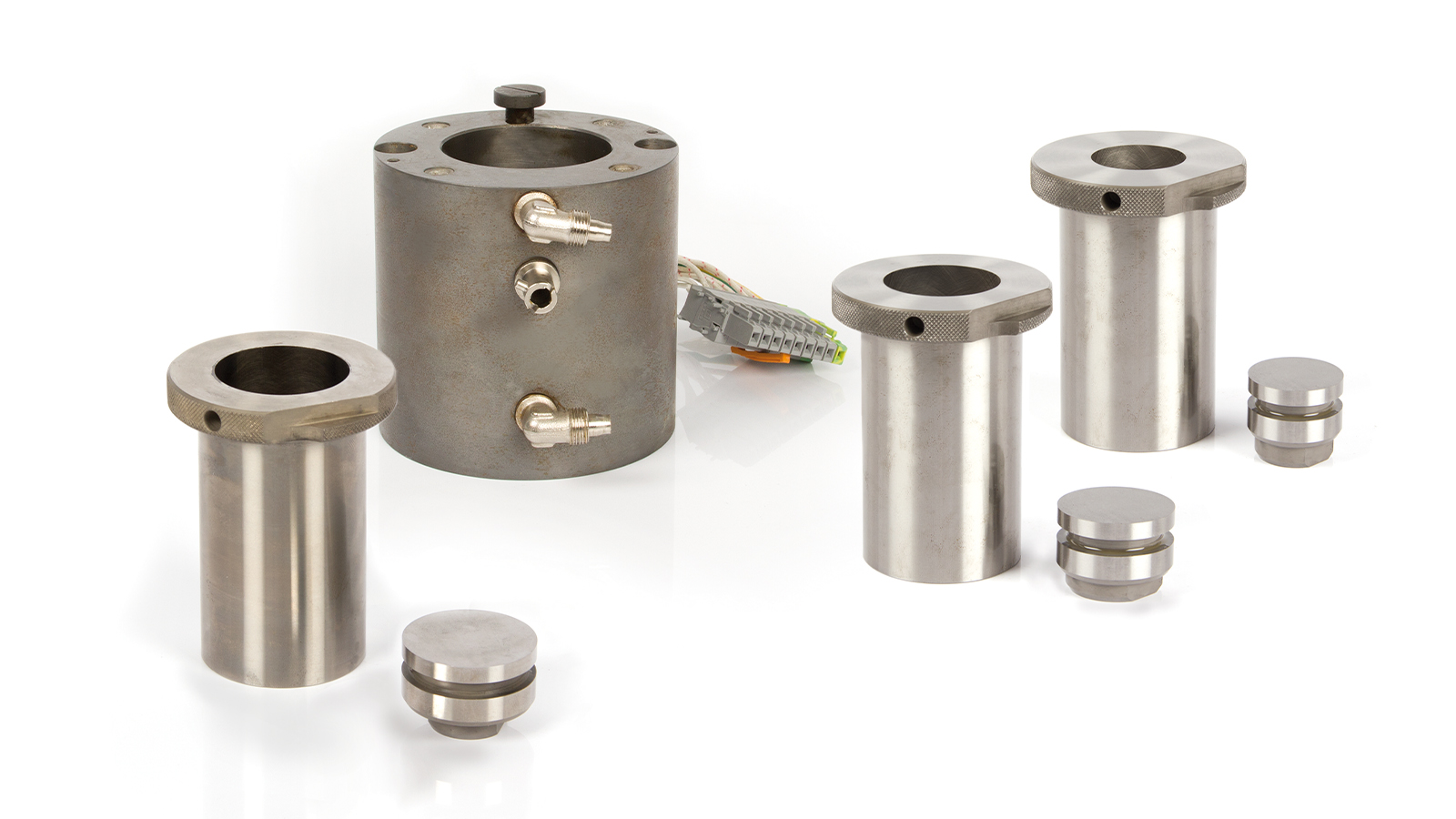

/materialographie/einbetten/equipment-einbettsysteme/presslam-1-1-heizelement-fuer-zylinder-25---40-(66060231)-1600-x-900-image-640w-360h.jpg "Heating element for cylinder, Ø 25.4; 30; 40 mm")
Heating element for cylinder, Ø 25.4; 30; 40 mm

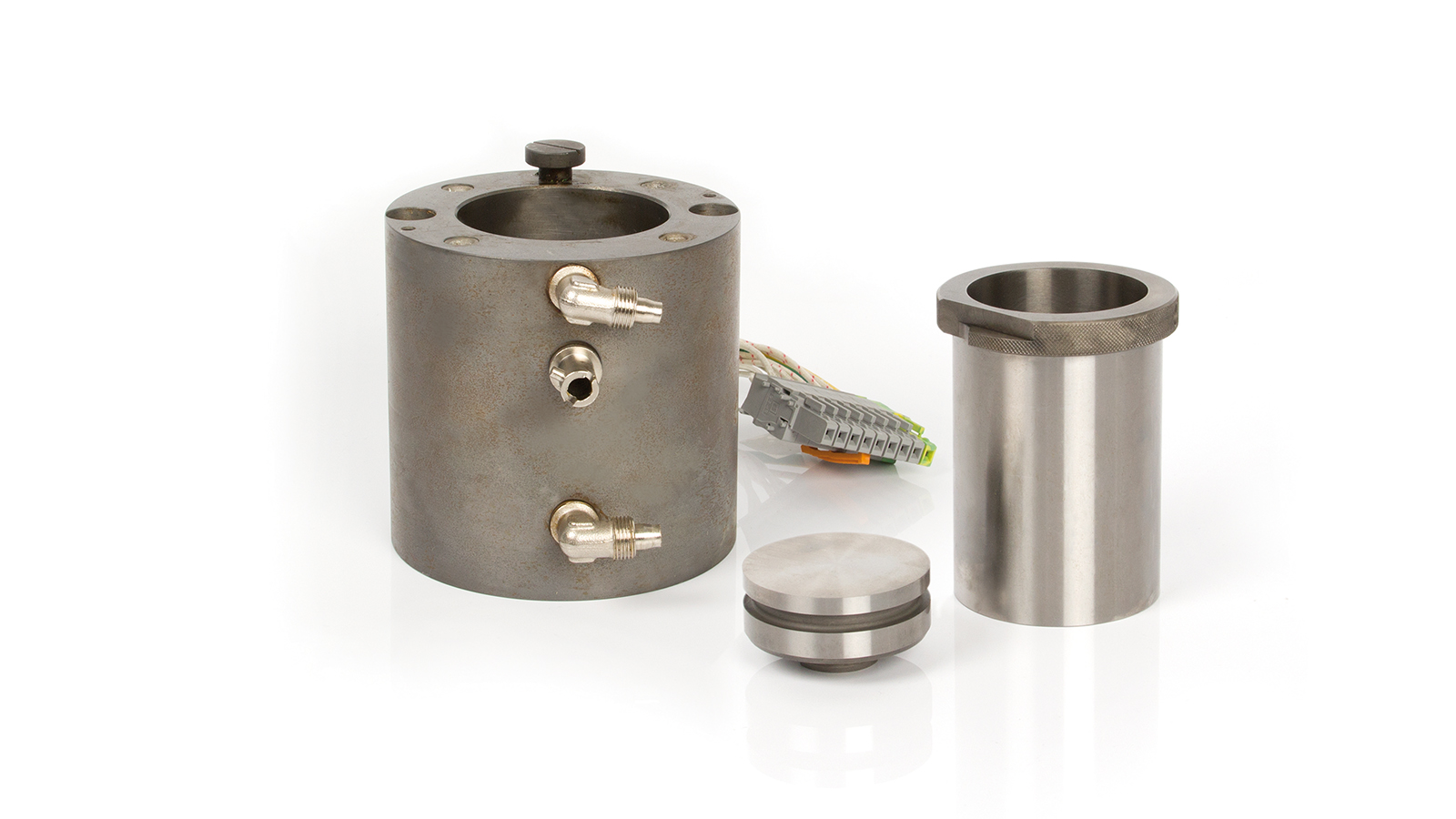

/materialographie/einbetten/equipment-einbettsysteme/presslam-1-1-heizelement-fuer-zylinder-50-(66060232)-1600-x-900-image-640w-360h.jpg "Heating element for cylinder, Ø 50 mm")
Heating element for cylinder, Ø 50 mm

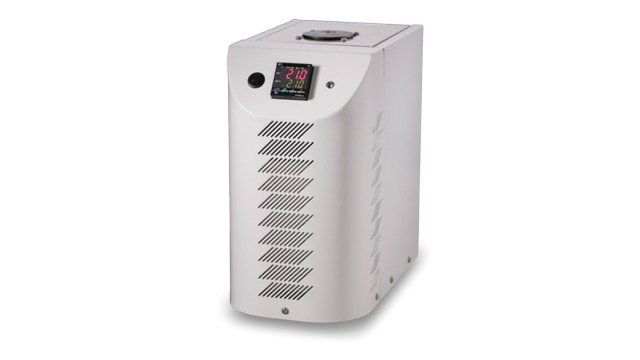

/materialographie/einbetten/equipment-einbettsysteme/presslam-1-1-kuehlaggregat-chiller-(66069981)-1600-x-900-image-640w-360h.jpg "An independent cooling unit allows the PRESSLAM 1.1")
An independent cooling unit allows the PRESSLAM 1.1 to be used without an external water supply!
| Article No. | Accessories PRESSLAM 1.1 | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 66060231 | Heating element for cylinder Ø 25.4; 30; 40 mm | |||||||||||||
| 66060232 | Heating element for cylinder Ø 50 mm | |||||||||||||
| 66060233 | Pressing cylinder Ø 25.4 mm | |||||||||||||
| 66060234 | Pressing cylinder Ø 30 mm | |||||||||||||
| 66060235 | Pressing cylinder Ø 40 mm | |||||||||||||
| 66065033 | Pressing cylinder Ø 50 mm | |||||||||||||
| 66054168 | Spacer Ø 25.4 mm | |||||||||||||
| 66054169 | Spacer Ø 30 mm | |||||||||||||
| 66054170 | Spacer Ø 40 mm | |||||||||||||
| 66065034 | Spacer Ø 50 mm | |||||||||||||
| 66069981 | Cooling unit for PRESSLAM 1.1 | |||||||||||||
Product details
Due to the easy handling and the possible double embeddings, high sample throughputs are possible. All parameters are controlled via a 5.7" colour touch screen and saved via an internal memory. Pre-set warm embedding parameters can be imported or exported via the unit's USB port. All phases are visible on the touch screen during the warm embedding process and can be changed at any time. Each function can be set separately.
4 pressurisation modes are available. In addition, there is a function that reduces water consumption for cooling. As soon as the PRESSLAM 1.1 is switched on, the system performs a preheating cycle which is terminated after 6 minutes. Due to the temperature range between 20 and 200 °C, all commercially available warm embedding materials can be used.
The press cylinder is easily accessible and wide open to position the sample and perform filling. The sample chamber can be locked and unlocked quickly and easily by swiveling the chamber lock.
The PRESSLAM 1.1 is equipped with a main heating system that houses the cylinder. This element is connected to the cooling system. The standard heater is suitable for diameters between 25.4 and 40 mm. A heating element for a diameter of 50 mm is also available. The press cylinder can be changed without tools. Changing the heater takes only a few minutes.
The PRESSLAM 1.1 is an ideal addition to your metallography. Its compact size makes it easy to place several machines next to each other.
