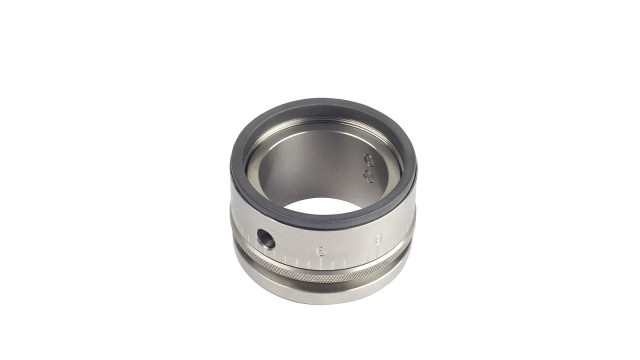

Hand Specimen Holder & Inserts
Important tool for target preparation
The hand specimen holder is an important tool for target preparation, it minimises the risk of over-grinding and the microscopic control effort.
The hand specimen holder is designed for ground and thin sections (holder or insert H). The vernier setting makes it possible to achieve a defined material removal (distance between 2 graduations of the scale = 0.02 mm).
The locking ring prevents the preset dimension from being adjusted during the grinding process. The very hard ceramic ring prevents over-grinding and ensures reliable removal up to the desired level.
Benefits
- minimises the risk of overgrinding
Products
/materialographie/schleifen-and-polieren/zubehoer-schleifen-and-polieren/handprobenhalter-image-640w-360h.jpg "Manual specimen holder")

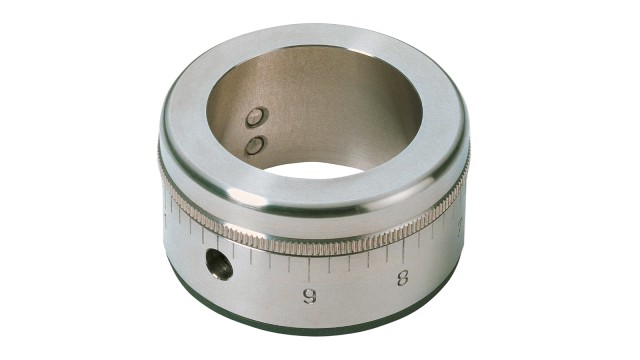

Manual specimen holder
Manual specimen holder Ceramic ring
/materialographie/schleifen-and-polieren/zubehoer-schleifen-and-polieren/handprobenhalter-einsatz-m-1600-x-900-image-640w-360h.jpg "Insert M")

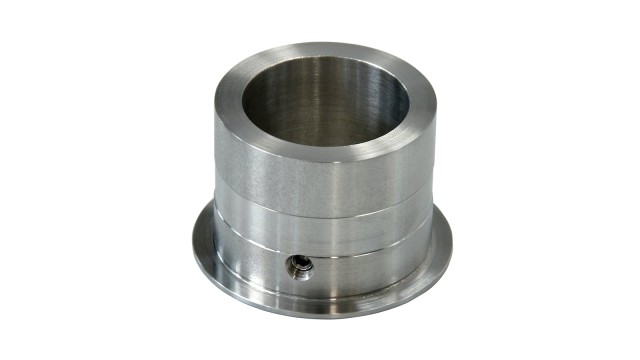

Insert M
/materialographie/schleifen-and-polieren/zubehoer-schleifen-and-polieren/handprobenhalter-einsatz-h-1600-x-900-image-640w-360h.jpg "Insert H")

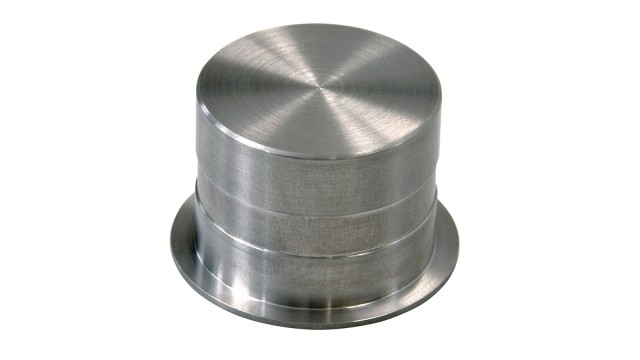

Insert H
