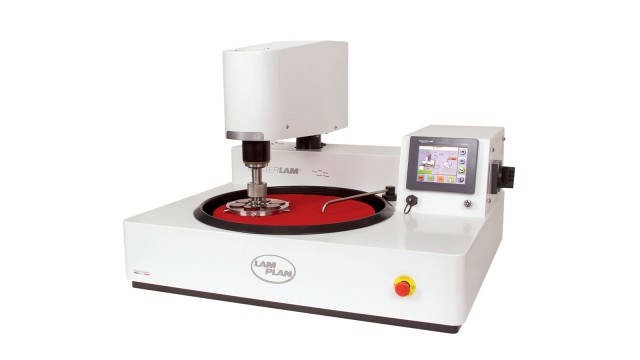

MASTERLAM® 1.1
Grinding and polishing machine for wheels up to Ø 400 mm
The MASTERLAM 1.1 is an automatic grinding and polishing machine with large diameter and central pressure as well as motor-driven oscillating head.
Benefits
- large diameter for discs up to Ø 400 mm
- powerful central print head, two directions of rotation, variable speed and variable pressure.
- polishing head with scan function for adjustable oscillation.
- oscillation option, especially large format specimens are polished efficiently
- touchscreen control with intuitive and user-friendly operator interface
Good to know
/materialographie/schleifen-and-polieren/schleif--und-poliermaschinen/masterlam-1-oszilationskopf-1600-x-900-image-640w-360h.jpg "MASTERLAM 1 Oszillationskopf")

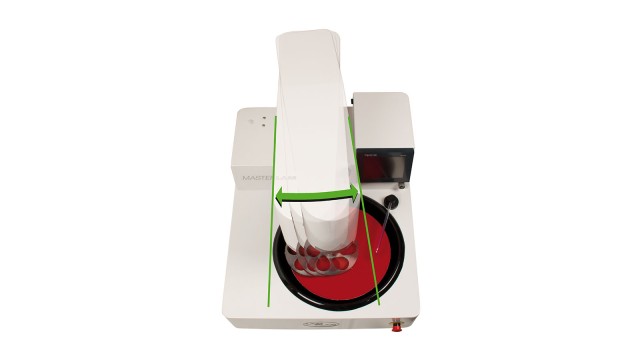

Tip: The oscillating head achieves an optimal polishing result and uses the entire range of the grinding and polishing discs.
Additional products
/materialographie/schleifen-and-polieren/schleif--und-poliermaschinen/distrilam-1600-x-900-image-640w-360h.jpg "DISTRILAM")

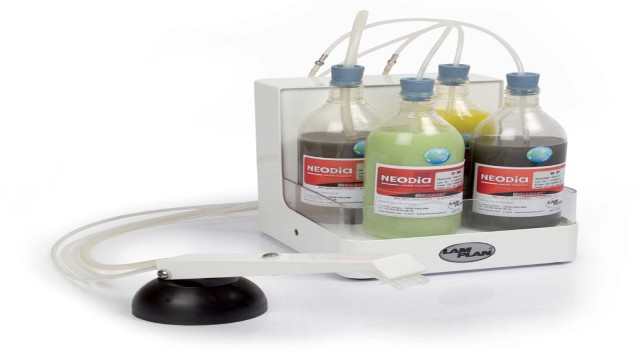

DISTRILAM®
Automatic dosing unit
The DISTRILAM is an automatic dosing unit with peristaltic pump. The dosing unit is controlled via the machine's touch screen (4 circuits).
Product details
The MASTERLAM 1.1 model features the same technical characteristics and ease of use as the MASTERLAM 1.0. However, the model 1.1 has a larger disc diameter and more power.
The MASTERLAM 1.1 is a central impression press. It is equipped with a 2.2 kW main motor as well as a 250 W head motor and can generate a working pressure of up to 450 N. The oscillating head is used to control the pressure.
With the help of the oscillating head, you can use the entire surface of the working disc (with 350 or 400 mm diameter). The quality of the results and flatness are improved, the removal rate increases and the service life of the polishing carrier increases (thereby using the entire working disc, so that even wear is achieved). The specific capacities of the MASTERLAM 1.1 enable you to master the most difficult applications, especially with regard to large polishing surfaces.
especially with regard to large polishing surfaces with a resulting need for torque and pressure, which poses problems for some standard models.
