CAMEO DISK Platinium
Long service life, gentle and planar material removal

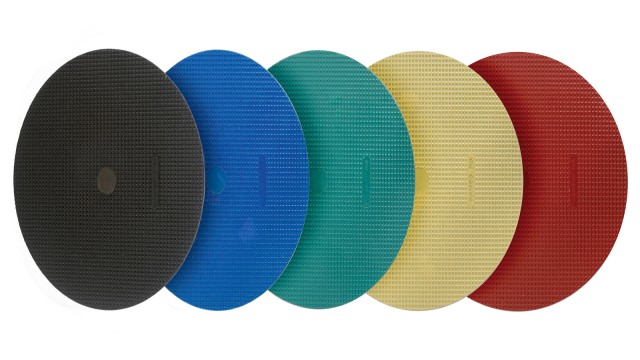

CAMEO DISK PLATINIUM - Diamond grinding disc for medium-hard to hard materials, excellent edge sharpness, gentle stock removal, for manual and automatic grinding. The PLATINIUM Diamond Grinding Disks are an alternative to SiC paper for grinding medium-hard to hard materials
such as steel, hard metal, ceramics and various material composites.
Benefits
- excellent edge definition – even with non-embedded
- samples
- easy handling, easy to clean
- reproducible results
- for manual and automatic grinding
- long tool life; gentle, planar material removal
- excellent cost-effectiveness
- suitable for almost all materials
- replaces a high number of SiC papers
- fewer and faster changeover times
- low storage requirements
Good to know
Product details

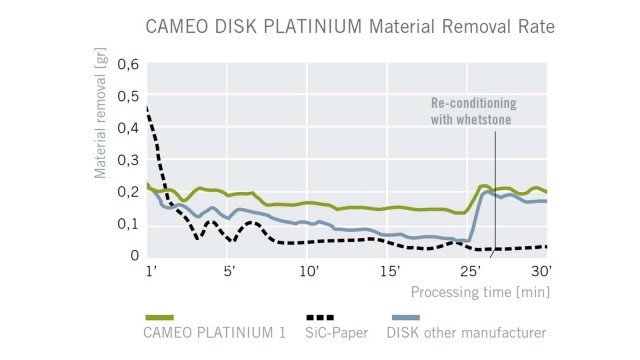

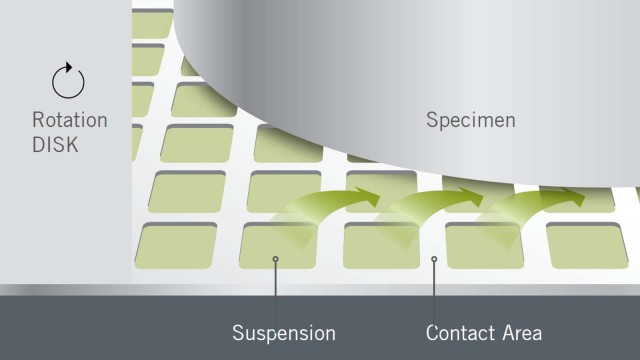

The secret of the material removal rate – the patented CAMEO DISK cell structure
The CAMEO DISK PLATINIUM diamond grinding disks can be used in all common automatic and semi-automatic grinding and polishing machines. However, due to the narrow grid of the diamond-tipped bars, the CAMEO DISK PLATINIUM is also excellently suited for manual preparation.
CAMEO DISK PLATINIUM is very easy to use. Water or the "Booster Liquid" is used as a lubricant. Alternative lubricants can also be used for water-sensitive samples.
The edge definition is significantly better than with preparation using SiC paper, which is related to both the abrasive itself (diamond) and the flat, stable carrier.
Even non-embedded samples and large welds can be processed without problems after a good cut. After 2 to a maximum of 3 grinding steps, the samples are optimally prepared for the subsequent polishing.
In addition to the long service life, the excellent grinding quality is the big plus. This means that preparation with CAMEO DISK PLATINIUM provides excellent value for money!
Additional Products
Booster Liquid
The Booster Liquid is a specially developed lubricant for use on the CAMEO DISK PLATINIUM during grinding. This Booster Liquid maintains the optimum grip of the diamond grinding disks over the entire service life and at the same time buffers sensitive samples. Ready to use, this lubricant ensures constant conductivity and avoids the use of a grindstone.
Application advantages of Booster Liquid
- improved performance of the diamond grinding disks
- keeps efficiency constant over time reduces the consumption of water
- universally applicable, can be used for all types of material
- Ready for use
