/materialographie/schleifen-and-polieren/schleifen-und-laeppen/cameo-disk-silver-and-gold-image-640w-360h.jpg "CAMEO DISK Silver & Gold")

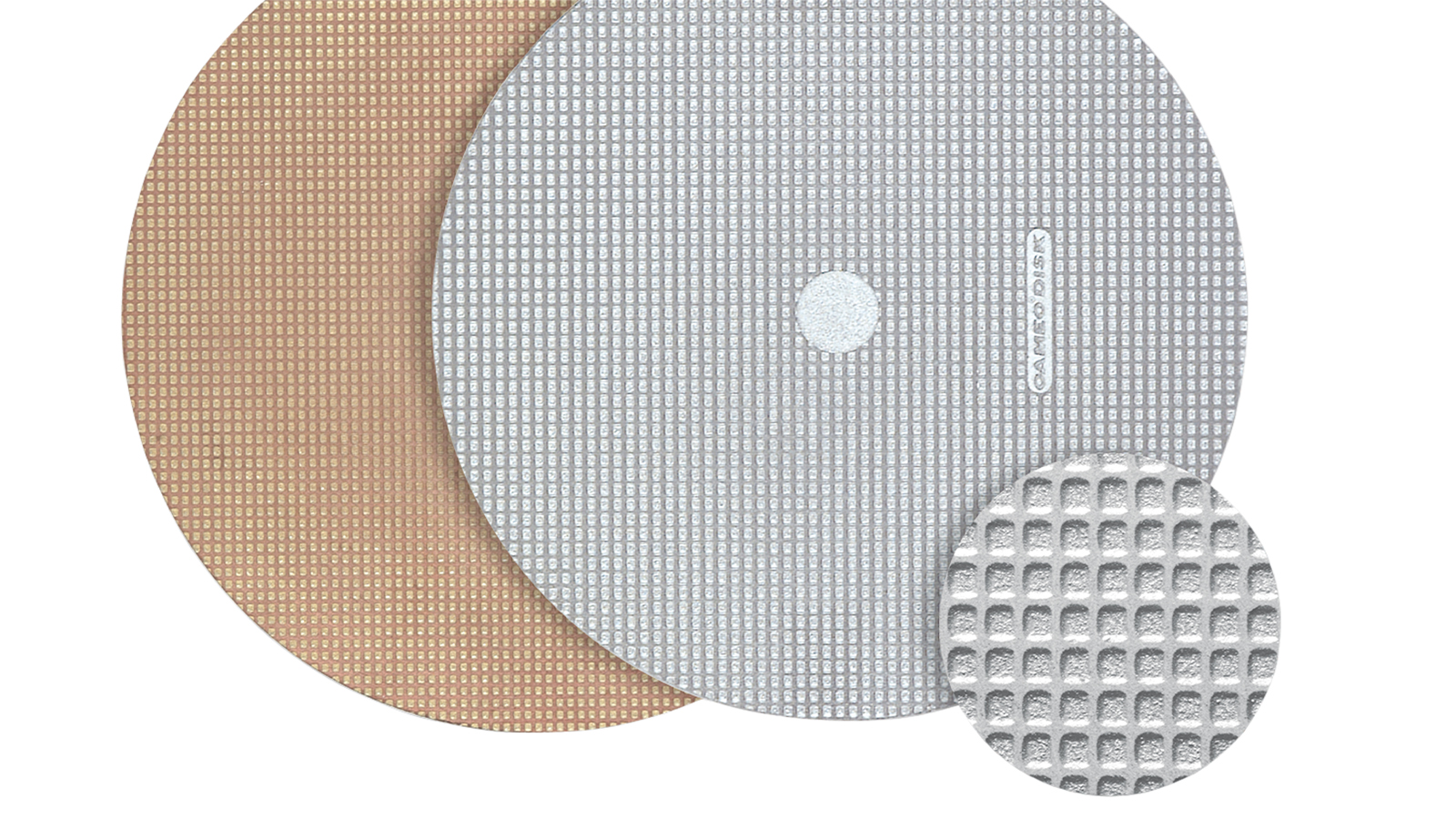

CAMEO DISK Silver & Gold
High, constant material removal rate
CAMEO DISK SILVER & GOLD are lapping discs with a high constant stock removal rate and excellent edge sharpness. The Bio Diamant Liquids serve as abrasives. The CAMEO Disk replaces work steps for which abrasive papers with grit sizes 240-4000 are used as an alternative for medium-hard to hard materials.
Benefits
- easy handling
- very good material removal rate
- grinding step jumps, for example, from the 120 grinding stone on the CAMEO DISK SILVER with Suspension green are possible.
- economical – with a single disk, CAMEO replaces the whole range of SiC papers from grain size 240–4000 with ideal edge definition
- the patented surface profile creates a highly constant material removal rate
- The micro tanks of the CAMEO surface hold the diamond suspension on the disk, the CAMEO DISK is optimally lubricated, and the cutting edges of the diamond grains are utilised in the best possible way. They significantly reduce the need for diamond suspension compared to lapping systems from other suppliers.
- compatible with all grinding and polishing systems!
- time-saving preparation with optimal surface flatness of all samples
- efficient: Different grain sizes of diamond suspensions can be used on just one CAMEO lapping disk.The disk adapts to the requirements.
Good to know

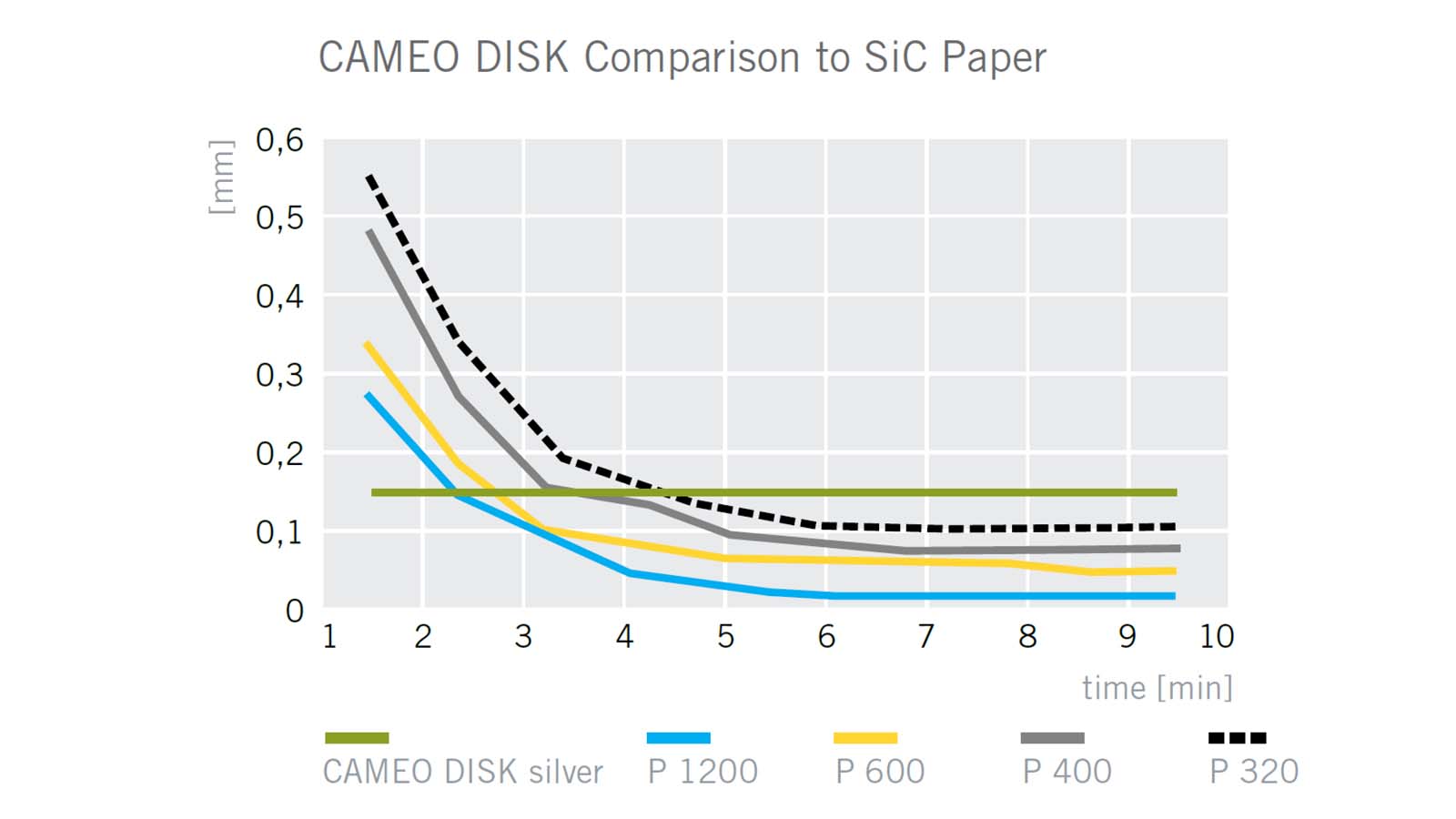

/materialographie/schleifen-and-polieren/schleifen-und-laeppen/cameo-disk-comparison-to-sic-paper-1600-x-900-image-640w-360h.jpg "Abtragsleistung")
Practical tip
Lapping is usually much more gentle than grinding and therefore better suited for sensitive, brittle samples.
For most materials, BioDiamant Liquid green (9 μm) is the right choice. For particularly difficult materials or material combinations to be prepared, the optimum grinding surface can be achieved by using coarser (blue, 12 μm) and/ or finer BioDiamant Liquids (yellow, 6 μm). The diamond suspension is added sparingly at regular intervals to ensure optimum material removal and ideal lubrication.
