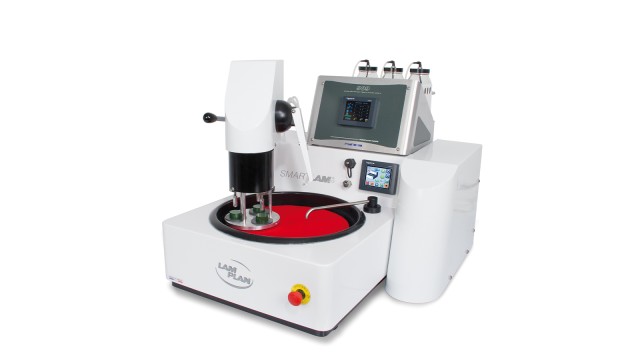

SMARTLAM® 3.0
Semi-automatic grinding and polishing machine
The SMARTLAM 3.0 is the cost-effective solution for automated grinding polishing of metallographic samples with low sample throughput. Powerful and easy to operate.
The SMARTLAM 3.0 is equipped with a new, specially motorised head consisting of a 3-hole specimen holder and a pneumatic single pressure system. By using reducing rings, you can polish specimens with a diameter of 25.4 mm to 50 mm.
Benefits
- the powerful motor ensures a high torque
- use of working discs with Ø 200 to 300 mm
- direction of rotation and speed (20 to 650 rpm) individually adjustable.
Additional products

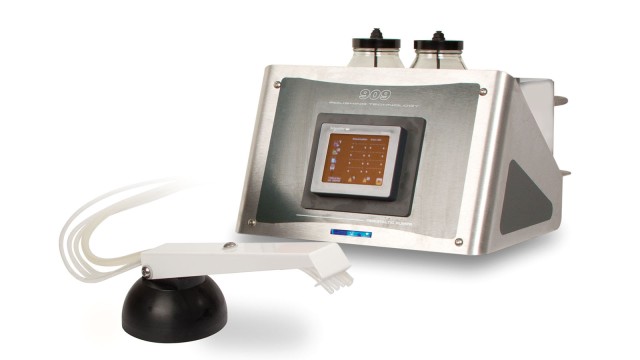

Dosing unit M.M. 909M
Accessories for machines equipped with the SPRINGLAM®.
- Dispensing of 3 different liquids.
- Control via colour touch screen.
- 3 peristaltic pumps, plus a control output for an external pump.

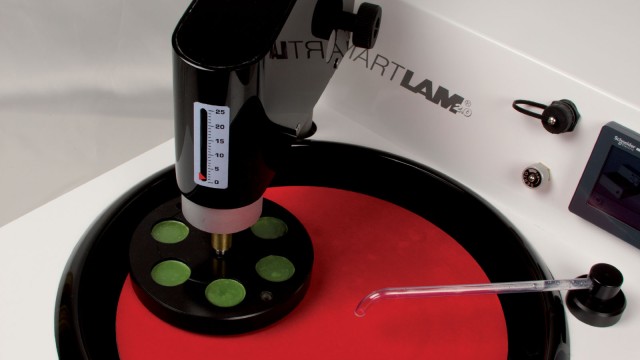

SPRINGLAM – Pressure head
Mechanical pressure head option SPRINGLAM (0-250 N, spring)
Product details
The powerful motor ensures high torque. The machine allows the use of working discs with Ø 200 to 300 mm. Running direction and speed (20 to 650 rpm) are individually adjustable.
The motorised head is extremely compact as the control unit is mounted on the side of the machine. It ensures an even pressure. The applicable pressure per specimen is 5 to 60 N. With reduction rings, specimens from Ø 25.4 mm to 50 mm (working disc Ø 200 mm: max. 3 specimens Ø 30 mm) can be processed. The positioning is done by a lever system. The head can be swivelled completely to the side for changing the working discs. The water inlet consists of a flexible hose with flow control and safety solenoid valve. The water inlet can be easily pulled out for cleaning.
All functions are controlled via a touch screen. The programmes can be stored in the unit's internal memory. For more efficiency, it is possible to equip the SMARTLAM 3.0 with the automatic dosing unit 909M.
