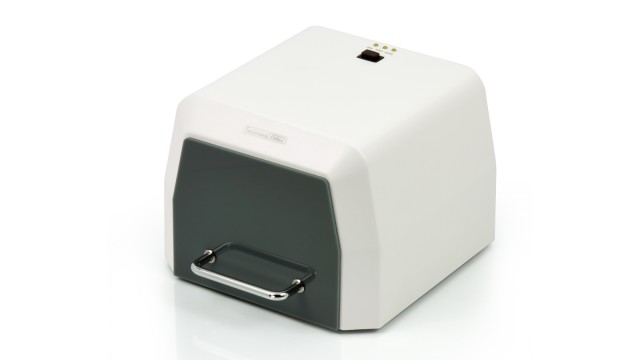

Technotray® POWER
High power and spacious sample chamber,cost-effective
Technotray Power – light polymerization unit, homogeneously illuminated sample chamber and space for up to 9 samples, auto-start and timer.
The Technotray POWER is a variable polymerization unit especially designed for the polymerization of light-curing Kulzer resins (Technovit 2000 LC, Technovit 2021 LC FAST).
Benefits
- homogeneously illuminated sample chamber
- space for up to 9 samples
- auto-start
- timer
Good to know
Variable light sources
Perfect adaptation of the polymerization properties to the requirements of the sample
The new generation of light-curing products Technovit 2000 LC and Technovit 2021 LC FAST feature multifunctional initiators that allow them to react to a wide range of light wavelengths.
Together with the variable, cost-effective Technotray POWER light unit, this results in a highly versatile "light polymerization concept” that is very easy to adapt to the objective of sample preparation. LEARN MORE
Product details
Technotray POWER – Light polymerization unit
Equipped with high-quality aluminium reflectors and internal dimensions of: W x D x H: 170 x 160 x 120 mm, the unit has a spacious and homogeneously illuminated polymerization chamber that can accommodate up to 9 embedding forms (embedding form Ø 30 mm).
Light output
The arrangement of the light sources guarantees reliable polymerization with light-curing Technovit resins. With a maximum of 6 blue light lamps or LED strips of 9 watts each, the Technotray POWER is a powerful light polymerization unit that ensures fast, intensive and homogeneous polymerization.
polymerization temperature
- Ø 40 mm form fully poured without sample: max. 120 °C
- Ø 40 mm form cast in layers (2 mm): Irradiation 5 min: 70–90 °C
