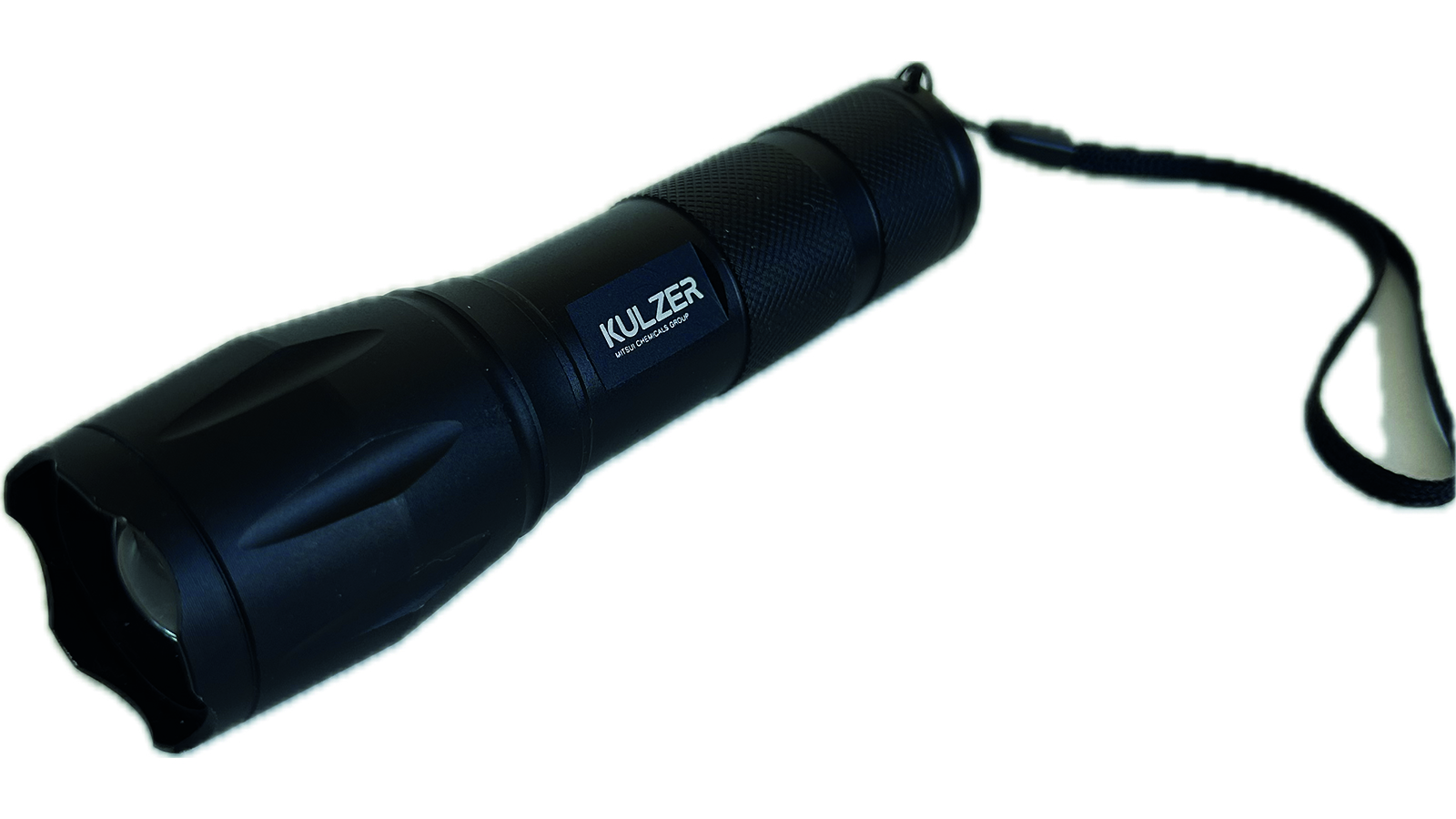

Technovit® Blue LED 2
Mobile Light polymerisation lamp
The Technovit Blue LED 2 is a powerful and portable LED polymerization lamp specifically designed for the reliable curing of light-curing Technovit products. It is ideally suited for applications in field (in-situ) metallography, offering flexibility, precision, and ease of use.
Key Benefits
- Compact and lightweight design (approx. 70 g)
- Adjustable light cone with zoom function
- Three selectable light modes: white, blue, violet
- Optimized for Technovit products
- Durable, high-quality anodized aluminum housing
- USB charging for maximum mobility
Product details
The durable housing made of anodized aluminum combines lightweight design with high robustness—perfect for mobile use. Thanks to the integrated zoom function, the light cone can be continuously adjusted, enabling targeted and precise application even in demanding environments.

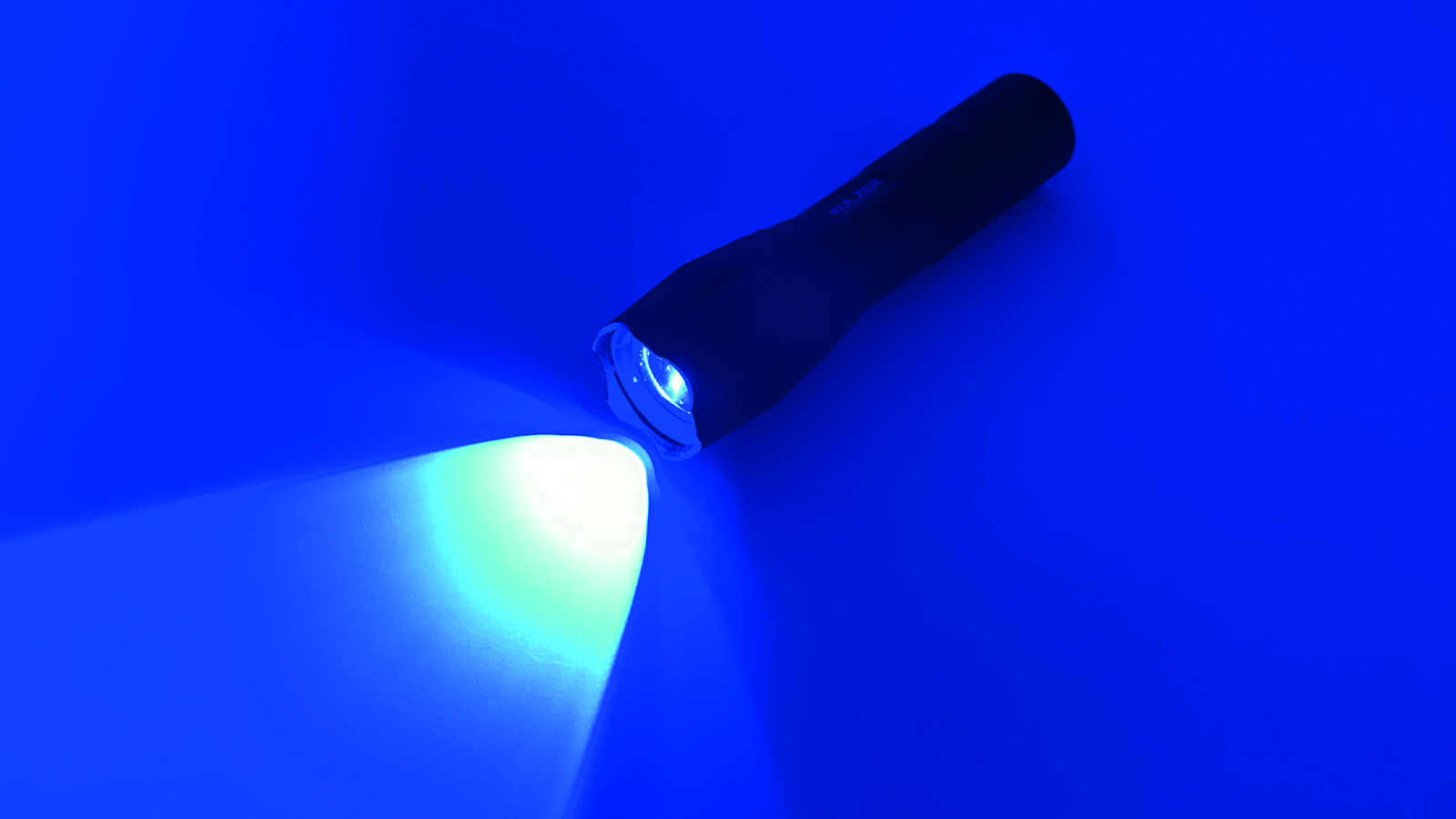

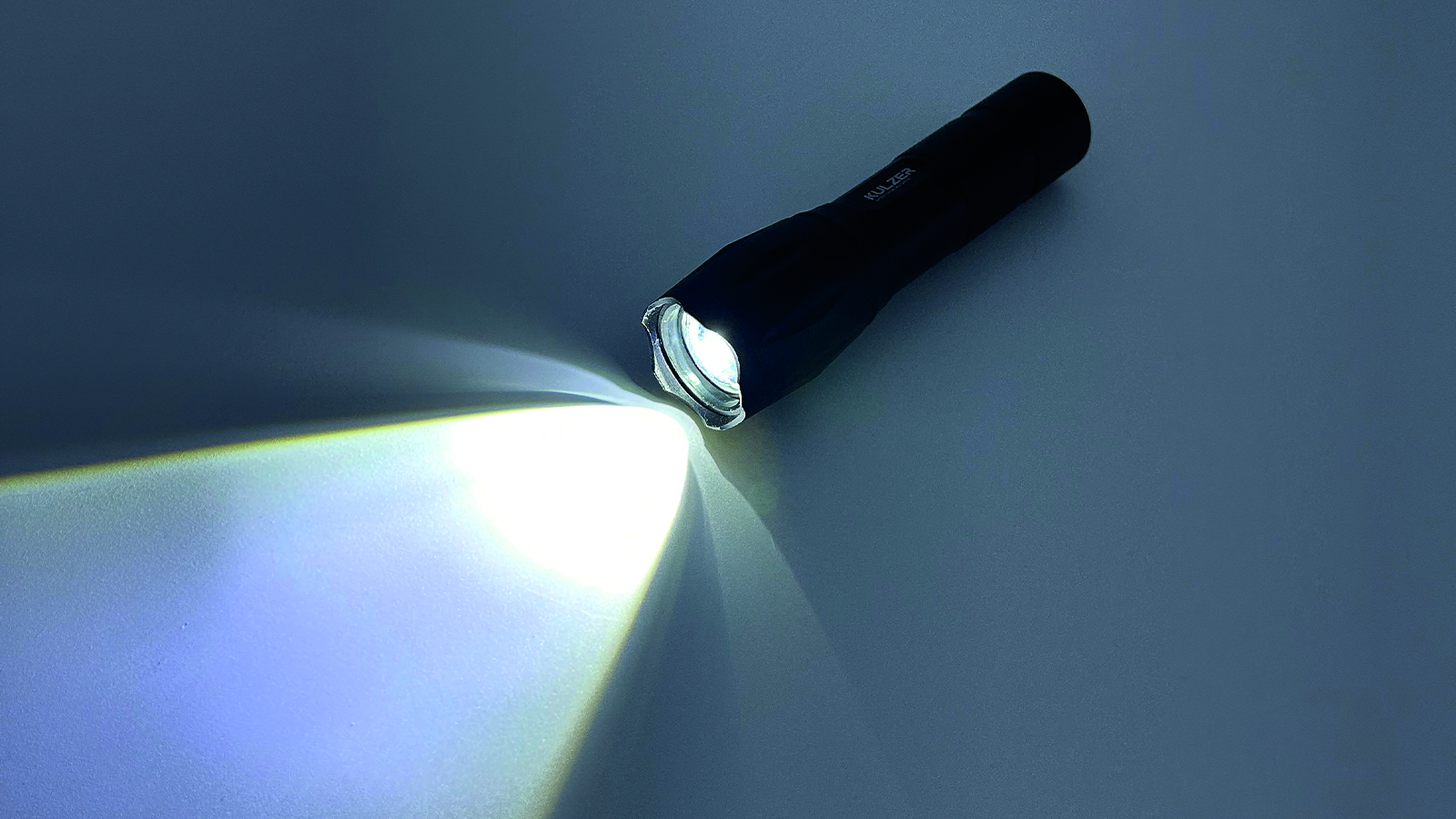

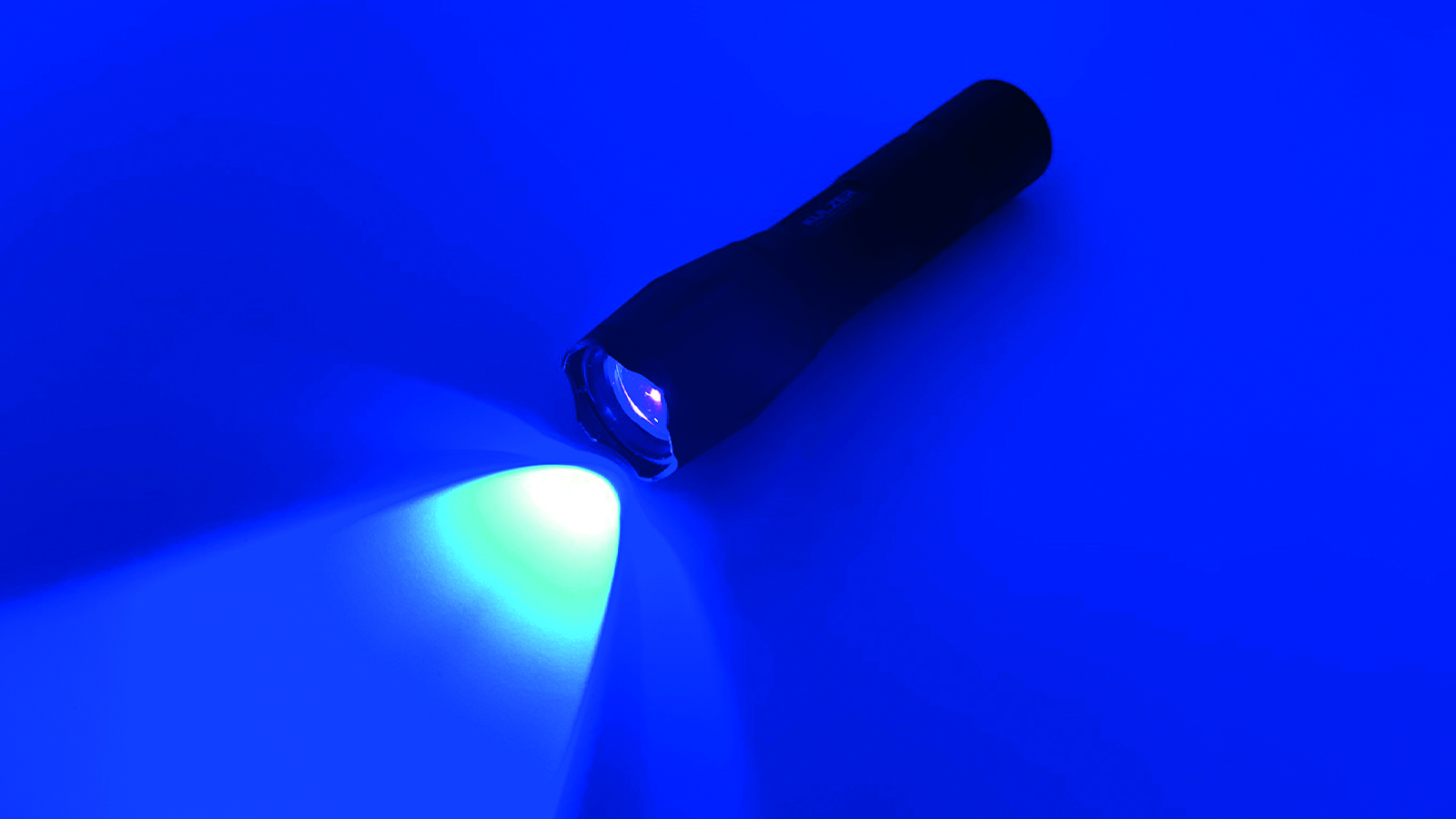

For maximum versatility, the lamp features three selectable light sources (white, blue, and violet), which can be conveniently activated via a switch on the rear side. Power is supplied by a built-in lithium battery, which can be easily recharged via USB connection—ensuring cordless and flexible operation.
/materialographie/einbetten/lichthaertende-einbettsysteme/technovit-blue-led-2-weiss-image-1600w-900h.webp)
/materialographie/einbetten/lichthaertende-einbettsysteme/technovit-blue-led-2-blau-image-1600w-900h.webp)
/materialographie/einbetten/lichthaertende-einbettsysteme/technovit-blue-led-2---violett-image-1600w-900h.webp)
Curing Times & Depths (Violet Light)
| Technovit 2200 | Technovit 2210 | Technovit 2220 | |
| Time | 40 s | 40 s | 60 s |
| Hardening depth | approx. 7 mm | approx. 5 mm | approx. 7 mm |
Technical Data
| Power supply | 5 V USB |
| Battery | Lithium battery (built-in) |
| LED current | 350 mA |
| Light output | max. approx. 120 mW |
| Wavelength (blue) | 460 nm ± 20 nm |
| LED lifespan | approx. 1000 h |
| Dimensions | Ø 30 × 125 mm |
| Weight | approx. 70 g |
| Operating temperature range | +10 °C to +35 °C |
| Storage/transport temperature | −10 °C to +40 °C |
| Humidity | 35–95% (no condensation) |
| Air pressure | 500–1060 hPa |
The Technovit Blue LED 2 provides an ideal combination of performance, precision, and mobility - making it the perfect solution for professional use in both laboratory and field environments.
